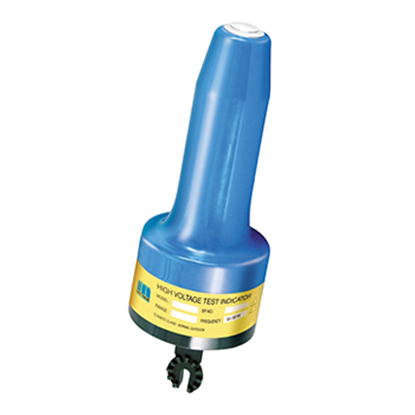

Manufacturer: MOTWANE
Model: HV-50P
Origin: India
Warranty: 12 months
High Voltage Indication: 230V to 33 KV, 50 Hz AC( for HV 50P)
Insulation Resistance: Greater than 100M Ohms by 1KV I.R Tester
Dielectric Strength: 220KV AC, 50 Hz of complete assembly
Drop Test: The Voltage Detector is dropped from horizontal and vertical positions from a height of 1m on to a test surface of concrete
Current Consumption: 30mA maximum
Battery low: 7.2 V nominal
Battery: 9V/ battery type 6F22 or equivalent
Visual Indication: High Bright LEDs flashing
Audible Indication: Buzzer beeps loudly
Insulated Stick: Fibre Glass; length 1.2m or 3m; 2kg
Temperature Range: 5°C to 50°C
Humidity: <85% RH non condensing
Storage Temperature: 10°C to 60°C, < 85% RH condensing range
