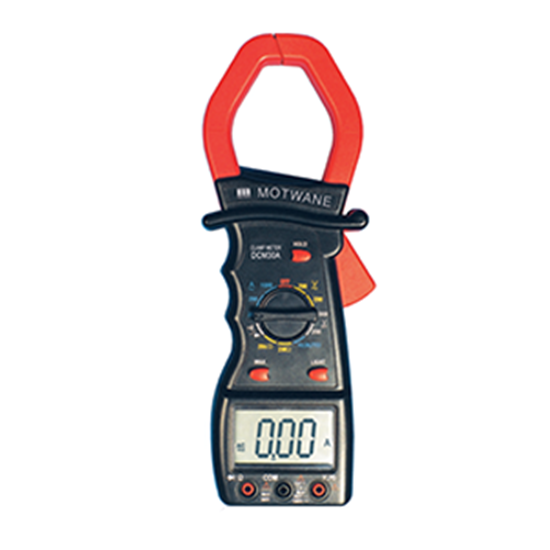

MOTWANE DCM 30A Clamp Meter (AC 1000A)

Manufacturer: MOTWANE

Model:DCM 30A

Origin: India

Warranty: 12 months

DC Volatge:

200V; 0.1V; ± 1.0% + 2dgt

1000V; 1V; ± 1.0% +2dgt

AC Volatge:

200V; 0.1V; ± 1.0% + 3dgt

700V; 1V; ± 2.0% +5dgt

AC Current:

20A; 10mA; ± 2.0% + 5dgt

200A; 0.1A; ± 2.0% +5dgt ≥ 600A

1000A; 1A; ± 2.0% +5dgt ≤ 600A

Resistance:

20KΩ; 10Ω; ± 1.5% ± 10dgt

2MΩ; 1KΩ; ± 1.5% ± 10dgt

Frequency:

2KHz, 1 Hz, ± 0.1% ± 5dgt

20KHz, 10Hz, ± 0.1% ± 5dgt

200KHz, 100Hz, ± 0.1% ± 5dgt

2MHz, 1KHz, ± 0.1% ± 5dgt

20MHz, 10KHz, ± 0.1% ± 5dgt

Continuity: Buzzer sound if resistance < 30Ω

Diode: Measure forward voltage drop

Accessories: one set of test lead, operating manual, carry case, one 9V battery

Datasheet
