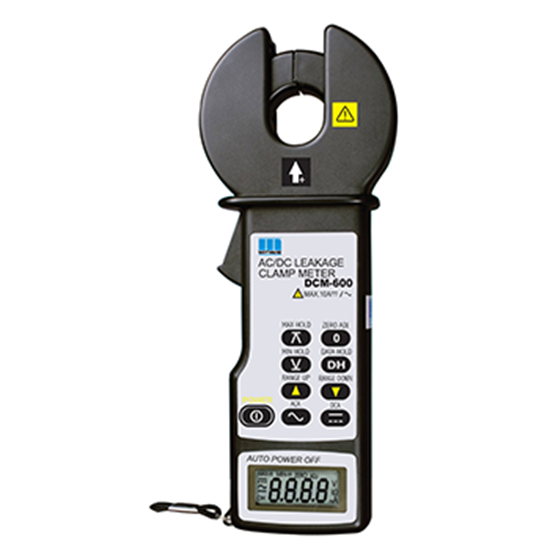

MOTWANE DCM 600 Clamp Meter (AC/DC 10A)

Manufacturer: MOTWANE

Model:DCM 600

Origin: India

Warranty: 12 months

Measuring Fuctions: DC current, AC current( true rms reading) max, hold, data hold, auto powerr off

Display : 3½ digit LCD, max, reading of 1999

Range: AC/DC 200mA, 2000mA, 10A

Jaw Opening Capability: 20mm

Sapling: 1.6times/s

Over range Indication: "OL" mark on LCD

Data hold Indication: "DH" mark on LCD

Resolution" 0.1mA/1mA/0.01A

Operating Temperature : 0 °C to 50° C, <80% RH( noncondensing)

Storage Temperature : -20 °C to 60° C, <75% RH( noncondensing)

Pwer Supply: 1.5"("AA"size, UM-3)x2

Battery Life: 120 hours or more( Alkaline)

Size: 76 x 194 x 30mm

Weight: 340g

Accessories: Carrying Case, Instruction Manual, Batteries
