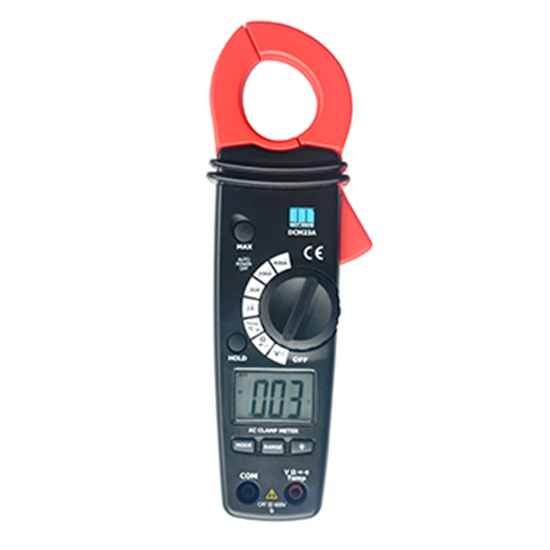

MOTWANE DCM23A Clamp Meter (AC 400A)

Manufacturer: MOTWANE

Model:DCM23A

Origin: India

Warranty: 12 months

AC current:

2.000A; 0.001A; ± 2,5% + 10 digits

20.00A; 0.01A; ± 2,5% +4 digits

200.0A; 0.1A; ± 2,5% +4 digits

400A; 1A; ± 3% + 4 digits

DC Voltage:

200.0mV; 0.1mV; ± 0.8% + 5 digits, 7.8MΩ

2.000mV; 0.001V; ± 1.2% + digits; 7.8MΩ

20.00V; 0.01V; ± 1.2% + 3 digits; 7.8MΩ

200.0V; 0.1V; ± 1.2% +3 digits; 7.8MΩ

600V; 1V; ±1.5% + 3 digits; 7.8MΩ

AC Voltage:

200.0mV; 0.1mV; ± 1.5% + 4 digits; 7.8MΩ

2.000mV; 0.001V; ± 1.5% + 5 digits; 7.8MΩ

20.00V; 0.01V; ± 1.5% + 5 digits; 7.8MΩ

200.0V; 0.1V; ± 1.5% + 5 digits; 7.8MΩ

600V; 1V; ±1.5% + 4 digits; 7.8MΩ

Resistance:

200.0Ω; 0.1Ω; ± 1.0% ± 4 digits

2.000Ω; 0.001Ω; ± 1.5% ± 2digits

200.0Ω; 10Ω; ± 1.5% ± 2 digits

20.00Ω; 100Ω; ± 1.5% ± 2 digits

2.000Ω; 1KΩ; ± 2.0% ±3 digits

20.00Ω; 10KΩ; ± 3.0% ± 5 digits

Temperature( Type K): -20 ˚C to 1000˚C, ± (3% + 5˚V )

4 ˚F to 1832 F˚ , ± (3% + 8 ˚F )

Display : LCD

Diode Test : Test current of 0.3mA typical; Open circuit voltage 1.5V DC typical

Continuity Check : Threshold <120 ; Test current < 1mA

Sampling Rate : 2 per second, nominal

Low Battery Indication : "BAT" is displayed

Operating Temperature : -10 C to 50

Relative Humidity : 90% (0 C to 30 C), 75% (30 C to 40 C), 45% (40 C to 50 C)

Battery : Two 1.5V ‘AAA’ batteries

Safety : CE, EN 61010-1, CAT III 600V

Auto power off : approx. 15 mins at Temperature range

AC Current bandwidth : 50/60Hz

AC Voltage bandwidth : 50/400Hz

Dimensions/Weight : 201x69x35mm/200g approx.

Standard Accessories: Test leads, Calibration certificate, Instruction manual, Carrying case, Bead K type thermocouple
