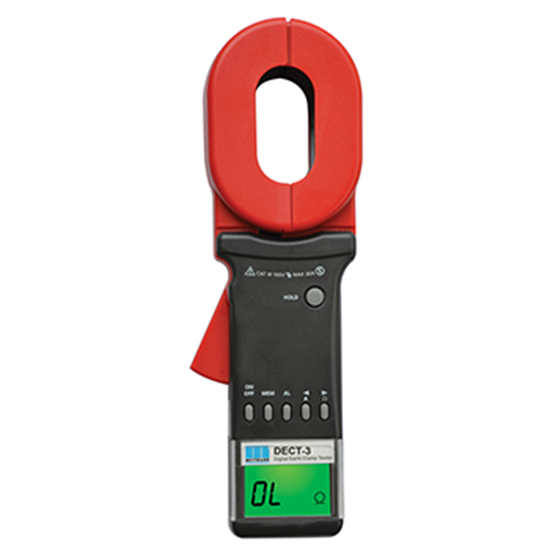

MOTWANE DECT-3 Clamp Tester (0,01~1200Ω)

Manufacturer: MOTWANE

Model: DECT-3

Origin: India

Warranty: 12 months

Display: 4 digit LCD , 47 mm X 28.5 mm

Resistance Measurement Range: 0.01Ω to 1200Ω

Current Measurement Range: 0 to 20 A

Memory Storage Facility: 99 records

Computer Interfacing: RS 232 for uploading the stored data and analyzing at later time

Single Measurement Time: 0.5 Second

Resistance Measurement Frequency: > 1 KHz

Current measurement Frequency: 50 / 60 Hz

Sound & Light annunciator: Beep sound, Flashing symbol

'AL' key to turn on-off & setting the sound & Light alarm

Selection range of resistance for setting alarm value: 1 – 199Ω

Selection range of current for setting alarm value: 1mA - 499 mA

External Magnetic Field: < 40 A/m

External Electric Field: < 1V/m

Power Source: 6VDC (4x1.5 V AA alkaline battery)

Auto Power Off: approx 5 minutes

Environmental Working Temperature: 00°C to 50°C

Relative Humidity: 10% to 90%

Jaw Size: 65mm X 32mm

Net Weight (Including Batteries): 1160 gms

Dimension (L x B x H): 285mm x 85mm

Resistance:

0.010-0.099 Ω; 0.001 Ω; ± (1% + 0.01Ω)

0.10-0.99 Ω; 0.01 Ω; ± (1% + 0.01Ω)

1.0-49.9 Ω; 0.1 Ω; ± (1% + 0.1Ω)

50.0-99.5 Ω; 0.5 Ω; ± (5% + 5Ω)

100-199 Ω; 1 Ω; ± (5% + 5Ω)

200-395 Ω; 5Ω; ± (10% + 10Ω)

400-590 Ω; 10 Ω; ± (10% + 25Ω)

600-880 Ω; 20Ω; ± (20% + 30Ω)

900-1200 Ω; 30 Ω; ± (25% + 30Ω)

Current:

0-9 mA; 0.05 mA; Unspecified

10-99 mA; 0.1 mA; ± (2.5% + 20mA)

100-300 mA; 1 mA; ± (2.5% + 20mA)

0.30-2.99 A; 0.01 A; ± (2.5% + 0.15mA)

3.0-9.9 A; 0.1 A; ± (2.5% + 0.5mA)

10.0-20.0 A; 0.1 A; ± (2.5% + 1A)

Standard Accessories: Carrying Case, Standard Loop Resistance of 5.1 Ω, Instruction Manual, RS 232 Cable, PC Soltware CD, Calibration Certificate
