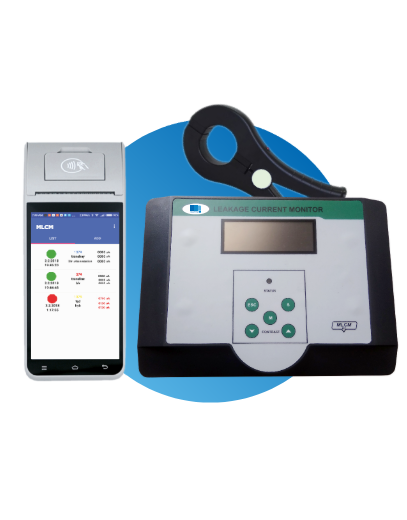

MOTWANE MLCM-B2 Leakage Current Monitor (1uA ~ 20mA)

Power: Rechargeable Li-ion Batteries

Range: 1uA to 20mA

B1 Method: Total 50 Hz + Total 3rd harmonic current, + B1 w/o system harmonic compensation

B2 Method:

All results of B1 + 3rd harmonic resistive current with system third harmonic compensation

Both B1 & B2 are provided with rated voltage and temperature compensation

Accuracy: +5%, + 5 least counts

Resolution: 1 UA

Lamp Diameter: 50mm.

Temperature Storage: -10 to 550C, Operating: -10 to 550C.

Dimensions: 220mm x 155mm x 80mm approx.

Weight: ~1 kg approx.

Accessories:

1 No. Leakage current monitor unit MLCM

1 No. 50 mm High sense current probe.

1 set hook stick, base plate, cables for B2 variants.

1 No. Smart phone with inbuilt printer.

1 No. MLCM app - software

1 No. Charger for MLCM

1 No. USB cables and Smart phone charger.

1 No. Operating and instruction manual.
