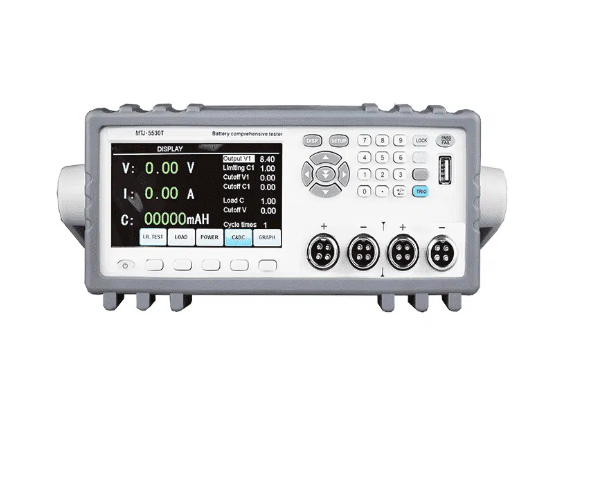

MultiTech MTJ-5530T Comprehensive Battery Tester (60V, 1999mΩ,99999mAh)

Measuring Range

Voltage Measuring Range: 0-60V 1mV Accuracy: ±5mV

Internal Resistance Measuring Range :0-1999mΩ Resolution 1mΩ

Capacity Measuring Range: 0-99999mAH Minimum Resolution

R1 R2 Resistance: 1kΩ~200kΩ

Measuring Accuracy

Voltage Measuring Accuracy: ±(Result*%0,1+3mV) (Voltage 0~36V); ±(Result*%0,1+30mV) (Voltage 37~60V)

Current Measuring Accuracy: ±(Result*%0,2+30mA) (Current 0~10A); ±(Result*%0,5+30mA) (Available11~30A)

Internal Resistance Measuring Accuracy: ±(Result*1%+1mΩ)

Capacity Measuring Accuracy: ±2%

Test Speed :Static Test (All Functions) 1.1-2 s

Dahili CNC: Maksimum Output Voltageı (sabit Voltage + sabit 30V

Voltage Source Index:

Output Maksimum Current: 1A (0.1mA ~ 3.0000A)

Output Maksimum Power: 30W

Ripple Voltage: <20mV

Load Regulation: <10%

Boost Response Time: 1s

Internal CNC Electronic Load Index:

Maximum Discharge Voltage: 60V

Maximum Discharge Current :3A Constant (0.1mA ~ 3.000A)

Limit Power: 100W (Constant)

Load Model: Constant Voltage Constant Current

Communication : Yes (with host computer software)
