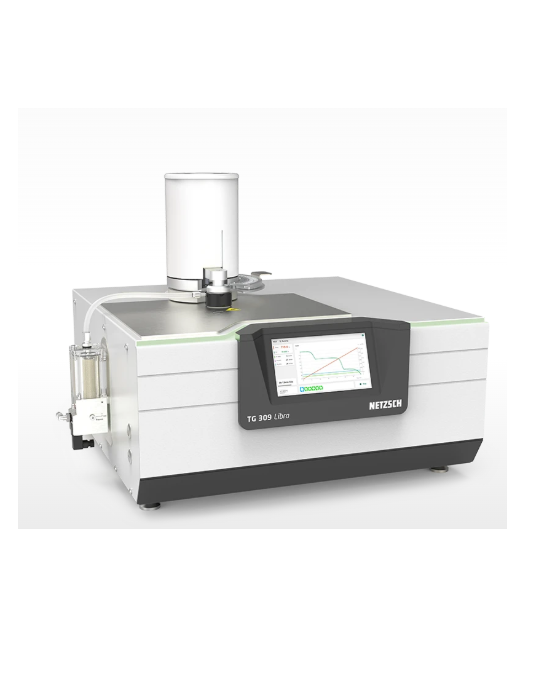

NETZSCH TG 309 Libra Classic Thermogravimetric Analysis

Temperature range: (10°C) RT to 1025°C

Heating rate: 0.001 K/min to 200 K/min

Balance resolution: 50 ng

Cooling time:

In nitrogen: ≈ 12 min from 1100°C to 100°C

In helium: ≈ 5 min from 1100°C to 100°C, ≈10 min to 25°C

Max. sample weight/ measuring range: 2 g (including crucible)

AutoVac: Automatic evacuation and refilling of purge gas; optionally available if MFC is selected

Temperature resolution: 0.001 K

Temperature accuracy: ± 0.3K (after calibration by c-DTA®, indium)

Temperature calibration: c-DTA®, also for detection of endo- and exothermal effects; Curie standards

Temperature stability:

Peak-to-peak: 0.03 K

RMS: 0.005 K

Temperature precision: 0.15 K

Vacuum-tightness: 1 mbar

Datasheet
