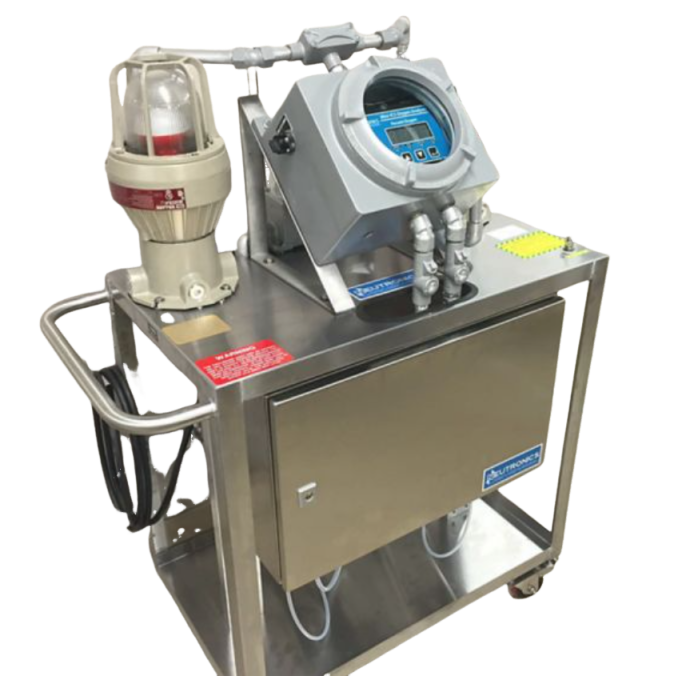

Neutronics Mini-ICS Mini ICS XP Cart System (0.1 ~ 25%)

Measurement range: 0.1 to 25% oxygen (0-1, 0-10, 0-25% fixed or auto range)

Display: 0.75 inch (19.05mm) digital LED display with color coded LEDs for system status

Status indicators: Color coded LEDs for normal, fault, low flow, and O2 alarm condi-tions

Analyzer user interface: Soft-key multi-function pushbuttons

Accuracy: ±1% of range

Materials of construction: 304 Stainless Steel cart

Wheels: Conductive caster wheels, swivel type

Operating temperature range: 0-40°C (32-104°F)

Area classification: Explosionproof for Class I, Division 1, Groups C, D

Power requirements: 220VAC, 50-60 Hz

On/off switch: Explosion proof switchbox with rotary on/off switch

Mains power cord: Factory supplied; mains power seal fitting potted by the factory

Dimensions: 48" (1219mm) height x 35" (889mm) width x 18" (457mm) depth

Weight: 200 lbs. (90.7 kg)
