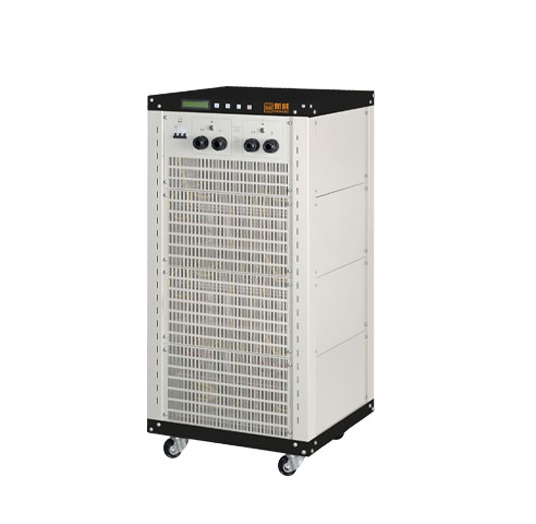

NEWARE CT-8004-5V200A-NTFA Advance Battery Testing System (25mV~5V, 1A ~200A)

Input: 7.1kW, 220V±10%, 3-Phase, 50Hz/60Hz

Output:

      Voltage: 25mV ~ 5V, ±2.5mV; Discharge to 0V

      Current: 1A – 200A, ±0.05% FS, up to 4 custom ranges

Resolution: AD 16bit, DA 16bit

Data Acquisition:

      Frequency: 100Hz Max

      Mode:

            Min Time Interval: 100ms

            Min Voltage Interval: 10mV

            Min Current Interval: 0.4A

Response Time 1msec, 10%-90% Current Range

Operation Mode:

      Charge: Constant Current, Constant Voltage, Constant Resistance

      Discharge: Constant Current, Constant Power, Constant Resistance

      Simulation: Constant Current, Constant Power

      End Conditions: Voltage, Current, Time, Capacity, Energy, -δV

Channel Control: Independent

Step Editor:

      Cycles: Max 65535

      Steps: Max 255

      Loops: Max 3 nested loops

      Step Time Format: 00:00:00.000 (mm:hh:ss.ms)

Input Impedance: ≥100kΩ

Noise: <75dB

Environment:

      Operating: 15℃~40℃, ≤70% RH, No Condensation

      Storage: -10℃~50℃, ≤80% RH, No Condensation

Battery Holders Options: Alligator Clips, Ring Terminal

Dimensions: 730*606*1780 (W*D*H mm)
