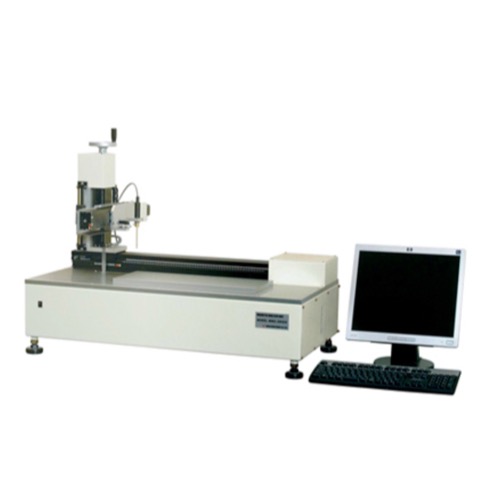

Nihon Denji Sokki (NDK) UHS-3DS X-Y Linear Magnet Analyzer (X: 280; Y: 120; [Z: 100]mm)

Measurement Item: X, Y axis

Automatic measuring distance/ Manual measuring range: X: 280; Y: 120; [Z: 100]mm

Display scope: 0.01mT~3.000T

Measuring range: 30mT, 50mT, 100mT, 300mT, 500mT, 1T, 3T, 5T

Resolution: 0.2mm or more

Accuracy: DC magnetic field ±2% (full scale of measuring range)

Functions: UHS・1DS+, 3D display

Probe options: Transverse type: 50102U, 50103U, 50105U; Axial type: 50112U, 50113U

Personal computer used: Windows 10 with USB port

Power input: AC100±10V, 5A

External dimensions [W×D×H]: 530×493×690mm

Weight: approx. 25 kg
