NI sbRIO-9208 C Series Current Input Module (D-SUB, 500 S/s, -20~20mA, 24-Bit) | EMIN.COM.MM

Current
NI sbRIO-9208 C Series Current Input Module (D-SUB, 500 S/s, -20~20mA, 24-Bit)

Stay Updated with Offers

Get exclusive volume discounts, bulk pricing updates, and new product alerts delivered directly to your inbox.

By subscribing, you agree to our Terms of Service and Privacy Policy.

Quick Support

Direct access to our certified experts

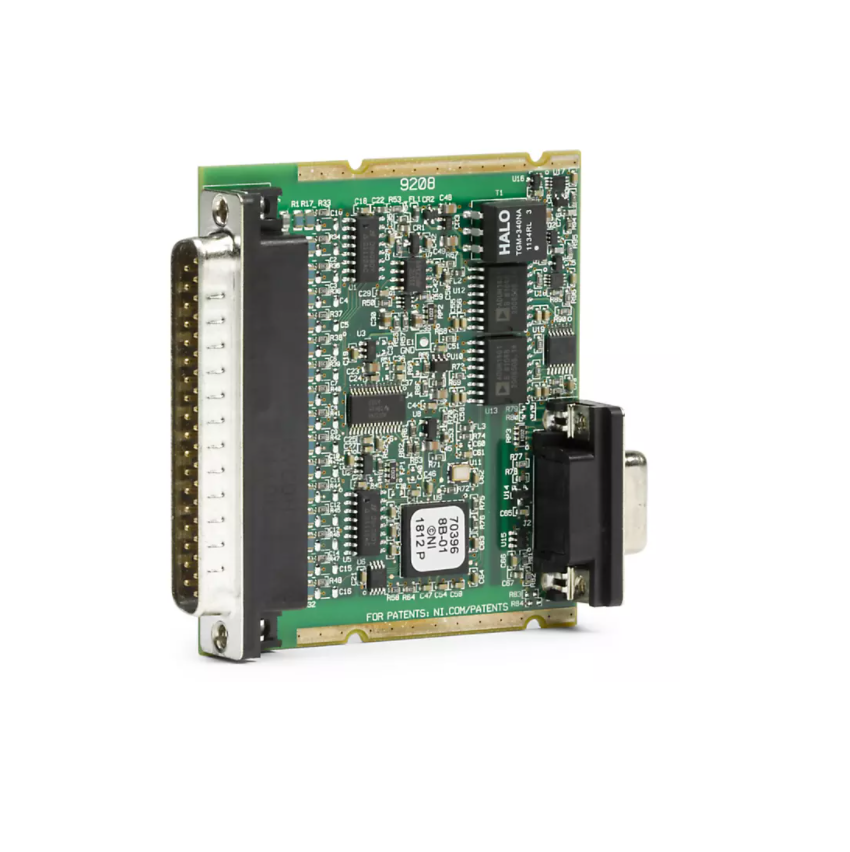

Product image

NI sbRIO-9208 C Series Current Input Module (D-SUB, 500 S/s, -20~20mA, 24-Bit)

ManufacturerNI(View more products from this manufacturer)

ModelsbRIO-9208

P/N780979-01

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Maximum Number of Single-Ended Analog Input Channels: 16

Maximum Number of Differential Analog Input Channels: 0

Maximum Sample Rate: 500 S/s

Analog Input Resolution: 24 bits

Measure Current: -20 mA to 20 mA

Analog Input Isolation: 60 VDC Ch-Earth Ground Isolation

Front Connection Type: D-SUB

Conformal Coated: No

Enclosed: No

Provides current measurements for CompactDAQ and CompactRIO systems.

The C Series Current Input Module features programmable input ranges, variable connectivity options, and built-in noise rejection. You can also choose from options with built-in anti-aliasing filters or high-channel density to reduce the number of modules needed. The C Series Current Input Module supports safety features, certifications, input ranges, overvoltage ranges, and connectivity for applications such as power quality monitoring and metering, utility pole-mounted smart switches, utility pole-mounted smart grid reclosers, substation merging units, industrial machine measurements, health monitoring, predictive maintenance and prognostics, and phasor measurement units (PMUs). The C Series Current Input Module includes the NI-DAQmx driver and configuration utility that simplify configuration and measurements. NI-DAQmx supports NI programming environments as well as Python, ANSI C, C#.NET, and MathWorks MATLAB® software.

Datasheet
