Max. Temperature: 1000˚C
Alternate Code: JK-SX2-4-10N
Capacity: 7 litres
Furnace Chamber & Structure: Ceramic chamber with powder coating for external casing
Temperature Control: PID Control with 30 segments programming
Heater Type: Wire Coil Heater
Working Space (mm): 200(W) x 120(H) x 300(D)
Product Dimension (mm): 750(L) x 750(W) x 900(H)
Power: 240 V, 50/60 Hz, 18A, 3 Ph, 4kW
Approx. Weight: 100 kg
Unit consist of :
Crucible Tong 300 mm long: 1 pc
Heat Resistance Glove (Asbestos): 1 pair
Copy of instruction manual: 1
Description:

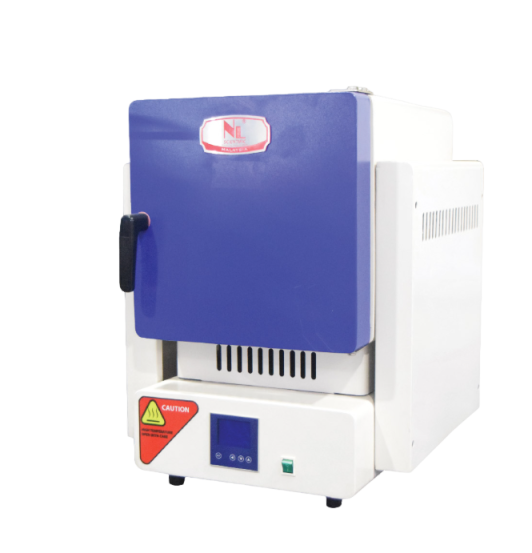

The NL Muffle furnaces are general purpose laboratory and heat treating furnaces. Designed for high temperature heating’s. Structure made in sheet-steel, furnace frontal in die casted steel to avoid the aggression of the acid smokes. The laboratory furnace is intended for analysis of various materials and for different kinds of thermal treatment at a temperature from 1000˚C of up to 1300˚C, complete with programmer for setting temperature ramp.
