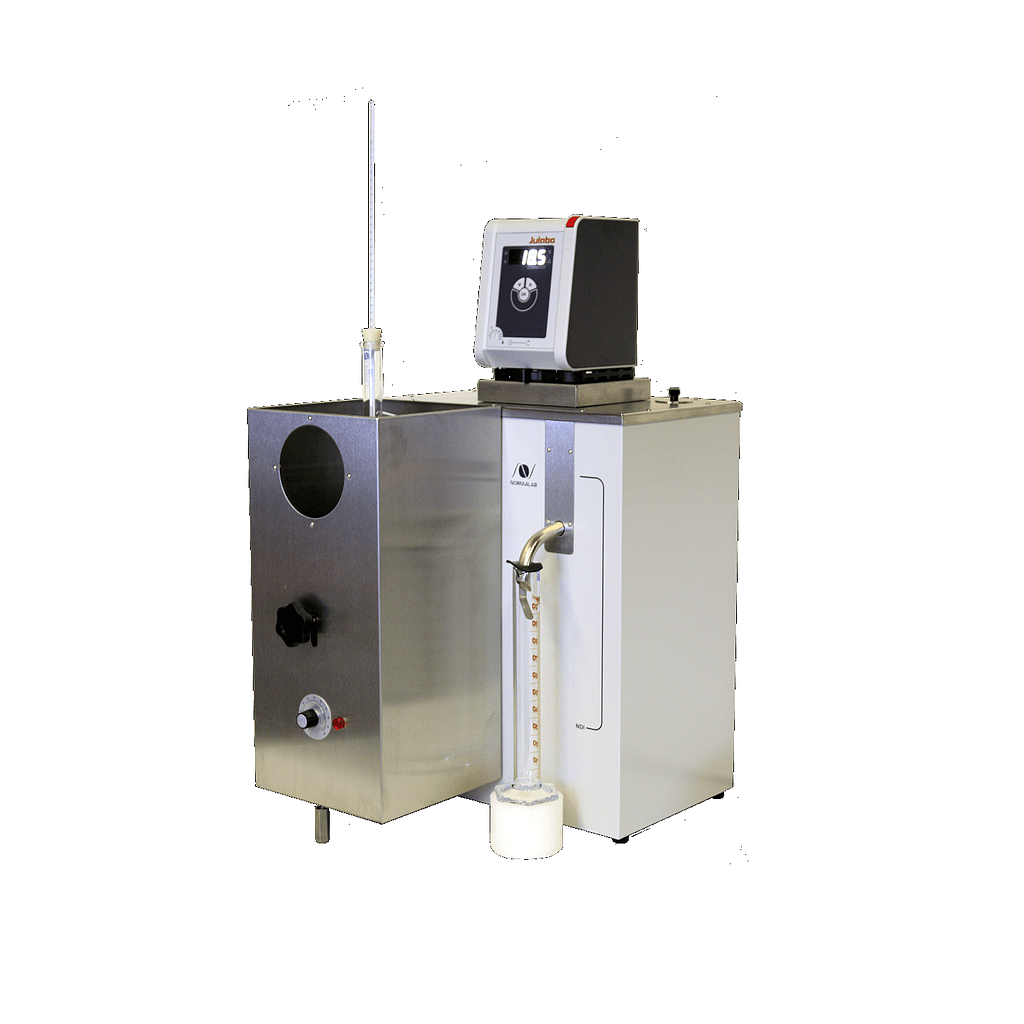

Normalab NDI CLASSIC Distillation Of Petroleum Products - Semi-Automated (~400°C)

Specifications

Key features

- Easy control of the condenser bath with thermostat

- Electric heater

- Temperature range: from ambient to 400°C

- The use of a cryostat is required for testing gasoline samples and maintain condenser temperature.

- Compressed air (2 bar max) can be used in order to cool down the heating compartment between 2 tests.

Safety

- Overheating safety adjustable on the control head

- Float for low level detection

- Differential circuit breaker

Option cryostat (Ref 23206)

- For temperatures below ambient, a cryostat of 7 to 10L working from -15 to 60°C is necessary

Scope of delivery:

NDI Classic is delivered with :

- Graduated receiver 100 ml (P/N 19425)

- Distillation flask 125 ml (P/N 24019)

- Ceran board 50mm (P/N 20348)

- Ceran board 100mm (P/N 20349)

- Thermometer ASTM 7C * (P/N 11494)

- Thermometer ASTM 8C * (P/N 11495)

- Bag of pumice (P/N 60514)

- Condenser cleaning cable (P/N 40009)

- Graduated cylinder 5 ml (P/N 12609EC)

* Without certificate, calibration on request

Site requirements:

- Power supply: 230 V - 50/60 Hz - 1500W

- Dimension: (W) 360 x (D) 490 x (H) 620 mm

- Weight: 23 kg
