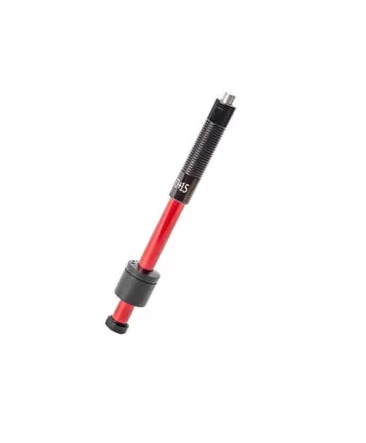

Application: For measurements in grooves or recessed surface.
Indenter type: Tungsten carbide
Test object requirements
Minimum sample weight:
Of compact shape: 5 kg (11 lbs).
On solid support: 2 kg (4.5 lbs).
Coupled on plate: 0.05 kg (0.2 lbs).
Minimum sample thickness:
Uncoupled: 25 mm (0.98 inch).
Coupled: 3 mm (0.12 inch).
Surface layer thickness: 0.8 mm (0.03 inch).
Material: low, fine and medium grained ferrous and non-ferrous metals
Measuring range
HLD+15: 300-800
HRC: 20~70
HB: 90~650
HV: 230~940
Tensile strength, MPa: 370~1740
User calibrations for any range (for example: HV10-940)
Measurement accuracy
HLD+15: ±10
HRC: ±2
HB: ±10
HV: ±15
Scales
Precalibrated for HRC, HRA, HRB, HB, HV, MPA
Can be calibrated for any other (Shore HS, etc.)
Materials
Precalibrated for steel, alloy steel, cast iron, stainless steel, aluminum, bronze, brass, copper
Can be calibrated for any other
Standard:ASTM A956
Compatible models:T-UD3 (Lab), T-D3 (Lab), T-UD2 (Lab), T-D2 (Lab)
Operating environment:Temperature: -20°C ~ 50°C
Humidity: 30% ~ 80% R.H
Weight (with cable), g: 95
Dimensions, mm: 162*20
