Brinell scales:
HBW 2.5/62.5
HBW 2.5/187.5
HBW 5/62.5
HBW 5/125
HBW 5/250
HBW 5/750
HBW 10/100
HBW 10/250
HBW 10/500
HBW 10/1000
HBW 10/1500
HBW 10/3000
Conversion to other scales: Manual conversion by the conversion tables for Rockwell and Vickers scales
Test forces:
62.5kgf (612.9N)
100kgf (980.7N)
125kgf (1226N)
187.5kgf (1839N)
250kgf (2452N)
500kgf (4903N)
750kgf (7355N)
1000kgf (9807N)
1500kgf (14710N)
3000kgf (29420N)
Measurement accuracy: ≤125 HB: ±3,0 %125 < HBW ≤ 225: ±2.5 %>225: ±2.0 %
Dwell time:5 – 60 s, adjustable
Testing materials:
+ Steel and cast iron
+ Сoarse-grain metal materials (casted parts, non-ferrous metals and alloys, copper and copper alloys)
+ Tempered steels, hardened and tempered steels
+ Soft metals (pure aluminum, lead, tin) and others
+ Hard plastics and bakelite
Size and requirements to test objects: Thick and small and large objects with rough surface such as rusty and roughly machined parts
Hardness test range: 8 ~ 650 HBW
Microscope magnification: 20x
Microscope resolution: 0.005 mm
Maximum height of the test object: 220 mm (optionally 500 mm)
Maximum depth of the test object: 135 mm
Data output: Digital display; RS-232; Printer (optional)
Type: Digital, electronic
The power source and the voltage: AC 220V ± 5%, 50-60 Hz
Dimensions: 650 x 500 x 850 mm
Net weight: ~130 kg
Gross weight: ~140 kg
Color: Blue
Standard Package

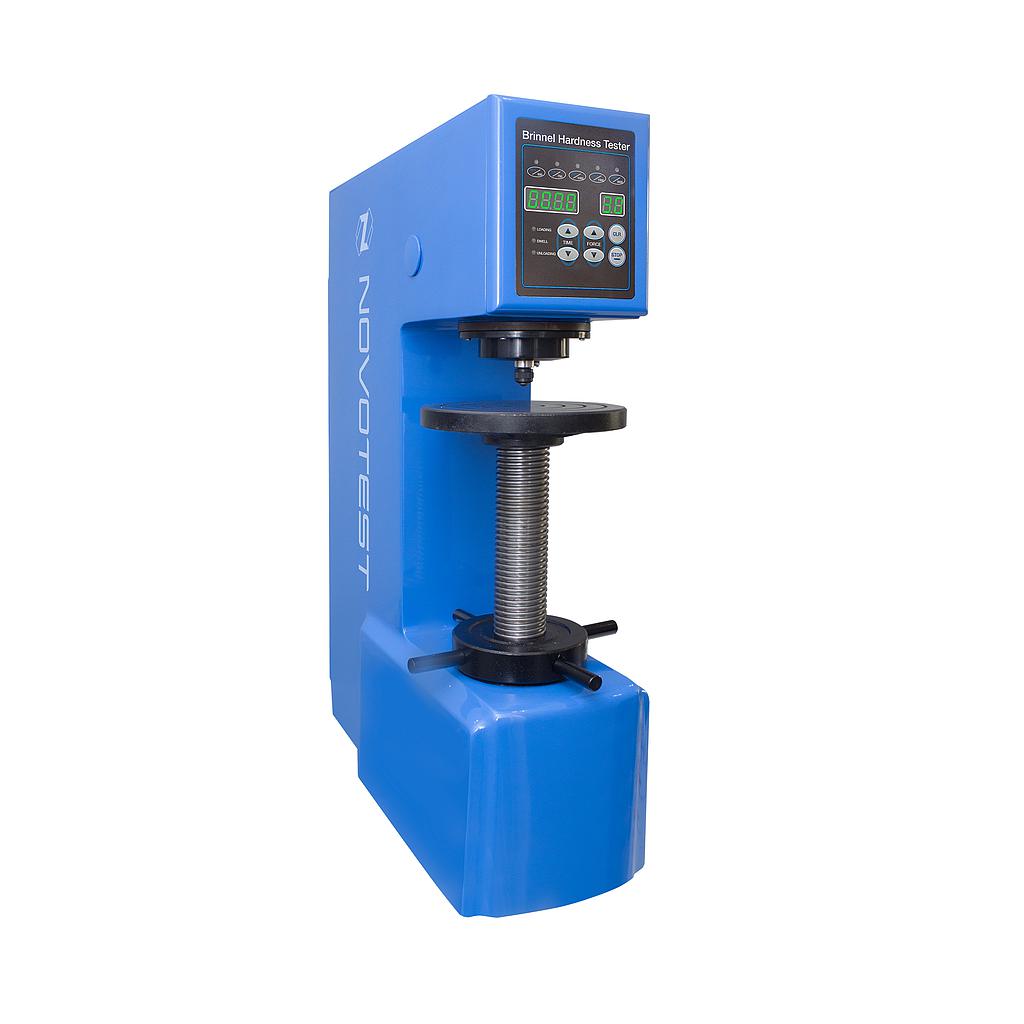

Brinell Hardness Tester NOVOTEST TS-B-C1 – 1 pc
Hard alloy steel balls (d=2.5; 5, and 10 mm) – 1 pc each
20X measuring microscope – 1 pc
Large testing table (d=20 mm) – 1 pc
Medium testing table (d=60 mm) – 1 pc
V-shaped testing table (d=80 mm) – 1 pc
Brinell hardness test blocks:
– HBW/3000/10 (150~250) – 1 pc
– HBW/1000/10 (75~125) – 1 pс
– HBW/187.5/2.5 (150~250) – 1 pc
Bolt adjuster – 4 pcs
Power supply unit with cable – 1 pc
Fuse – 2 pcs
Operation manual
Transportation box.
