NOVOTEST UT-1M-IP Ultrasonic Thickness Gauge (0.8 -1000mm; IP67)

Name: NOVOTEST UT-1M-IP Ultrasonic Thickness Gauge (0.8 -1000mm; IP67)
Brand: NOVOTEST

ManufacturerNOVOTEST(View more products from this manufacturer)

ModelUT-1M-IP

P/NUT-1M-IP-Lab

Warranty12 months

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Range of measured thicknesses (depending on the probe’s type), mm: 0,8 ... 1000

Setting range of ultrasound velocity, m/s:700-17000

Resolution, mm: 0,01

Response time, with no more than, s: 1

Basic measurement accuracy, mm: ±(0,01Т+0,05)

Overall dimensions, mm: 148х90х26

Operating temperature range, ° C: From -20 to + 40

Power supply: 3pcs АА batteries

Time of continuous work hours, not less, h: 120 (up to 200 hours with minimum settings)

Weight of electronic unit with battery, no more, kg: 0,35

Interface language and menu: Russian, English, Spanish

Degree of dust and moisture protection: IP65 (can be increased to IP66 and IP67)

Standard set:

Electronic unit Ultrasonic Thickness Gauge

Transducer (probe) – 1 pc (depends on the desired range of controlled thickness)

2 AA batteries

Charger

Cables

Calibration certificate

Operating manual

Case

Available options:

Couplant; UT-probes; Calibration blocks

Echo-Echo (Through-Coating) probe for NOVOTEST UT-1M (-IP, -ST, -2A)

High-temperature probe (up to 250°C) for NOVOTEST UT-1M (-IP, -ST, -2A)

Descroption:

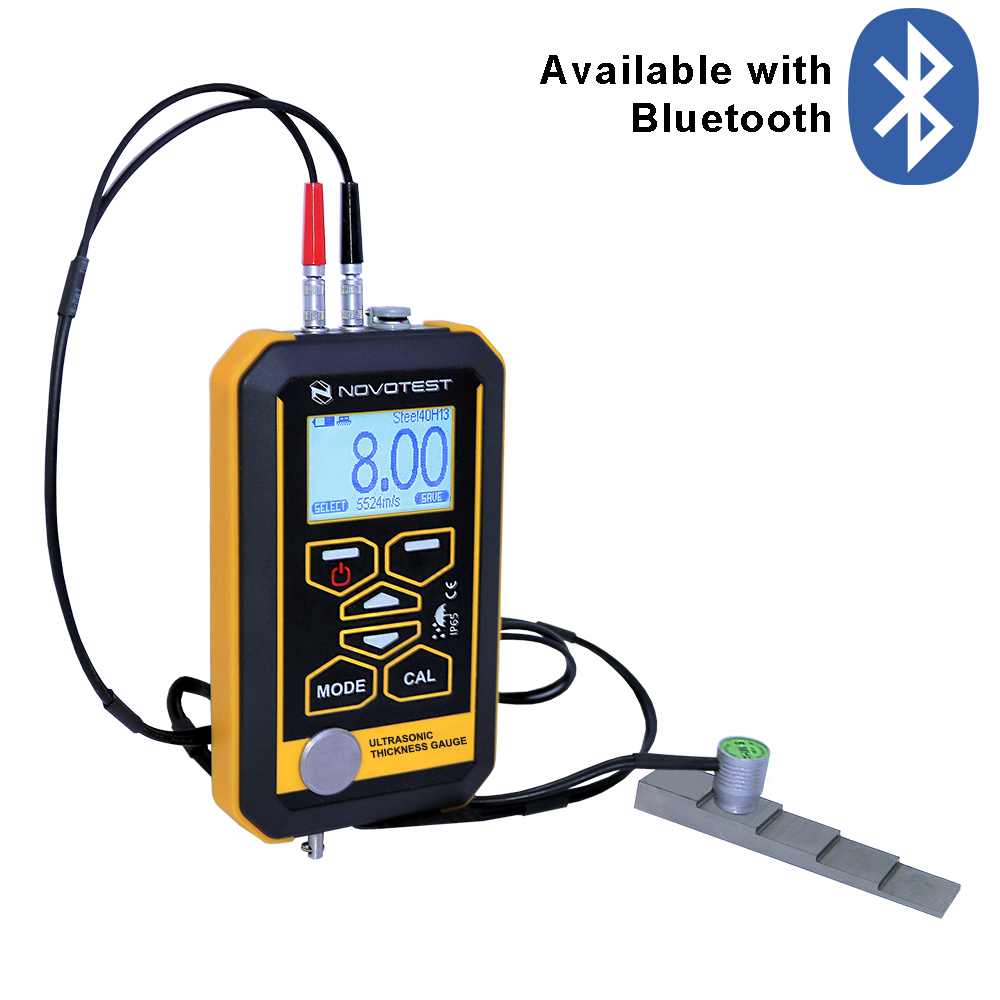

- Ultrasonic Thickness Gauge NOVOTEST UT-1M-IP is a special version of ultrasonic thickness gauge, it is designed to measure the thickness of various materials and products for one-way access in difficult climatic conditions – in dusty rooms, in high humidity, in the rain – when the use of a conventional ultrasonic thickness gauge is impossible.

- It is used to control the thickness of materials such as glass, metals and alloys, polymers, plastic and many others. Objects can be pipes, rolled products, structures, products and parts for various purposes and shapes.

Advantages:

- Unique protection from dust and moisture, previously not available in the market of ultrasonic thickness gauges of general purpose. By default the device comes with a degree of dust-moisture protection IP65. This protection degree can be increased up to IP67 (submerged in water) at order;

- Unprecedented autonomy of the device – increased up to 200 hours continuous operation time of the thickness gauge;

- Special rubber lining on the side surfaces of the casing facilitates the convenient retention of the thickness gauge in the user’s hand;

- Device has light weight and dimensions, in comparison with similar protected thickness gauges;

- Saved data can be transmit to PC;

- Material selection and automatic setting of ultrasound velocity;

- Large graphic display of high contrast and backlight;

- Display of measured thickness in mm and inches;

- Convenient menu in the device;

- Wide choice of UT probes with preset settings in the device;

- Modes of statistical processing of measurements;

- Ability to restore factory calibrations;

- Ability to adjust all parameters of the acoustic path;
