Measuring thicknesses range , mm: 0.45 … 1000 or more
- Probe 10MHz – P112-10-6 / 2: range 0.45-300 mm
- Probe 5MHz – P112-5-10 / 2: range 0.8-500 mm
- Probe 2,5MHz – P112-2,5-12 / 2: range 2.5-1000 mm
Probe dimensions, mm:
- Probe 10MHz – P112-10-6 / 2: D12×15 mm
- Probe 5MHz – P112-5-10 / 2: D17×20 mm
- Probe 2,5MHz – P112-2,5-12 / 2: D20×21 mm
Diameter of probe contact area, mm:
- Probe 10MHz – P112-10-6 / 2: 9 mm
- Probe 5MHz – P112-5-10 / 2: 14 mm
- Probe 2,5MHz – P112-2,5-12 / 2: 16 mm
Size of plate:
- Probe 10MHz – P112-10-6 / 2: 6 mm
- Probe 5MHz – P112-5-10 / 2: 10 mm
- Probe 2,5MHz – P112-2,5-12 / 2: 12 mm
Optional probes:
- Echo-Echo 5MHz probes for through-coating testing
- High temperature 5MHz probes, up to 250°C
Setting range of the ultrasonic velocity, m / s: 1000-9999
Response time, with no more than: 1
Basic measurement accuracy, mm: ± (0,01 T+/- 0.05)
Echo-Echo mode (through coating measuring), max thickness of coating, mm: 1 (with optional Echo-Echo probes only)
Standards: ASTM E797, EN 14127, EN15317
Storage of measurement results: 256
Menu languages: English, Spanish, Russian
Overall dimensions, mm: 120x60x25
Operating temperature range, °C: -5 to +40
Power supply: 2 AA batteries
Time of continuous work hours, not less, h: 10
Weight of electronic unit with battery, no more, kg: 0.2
Standard package:
- Electronic unit Ultrasonic Thickness Gauge UT-1M-ST
- Transducer (probe) – 1 pc
- AA batteries – 2 pcs
- Charger
- Cables
- Operating manual
- Case
Optional accessories:
- Couplant
- UT-probes
- Calibration blocks
Description:

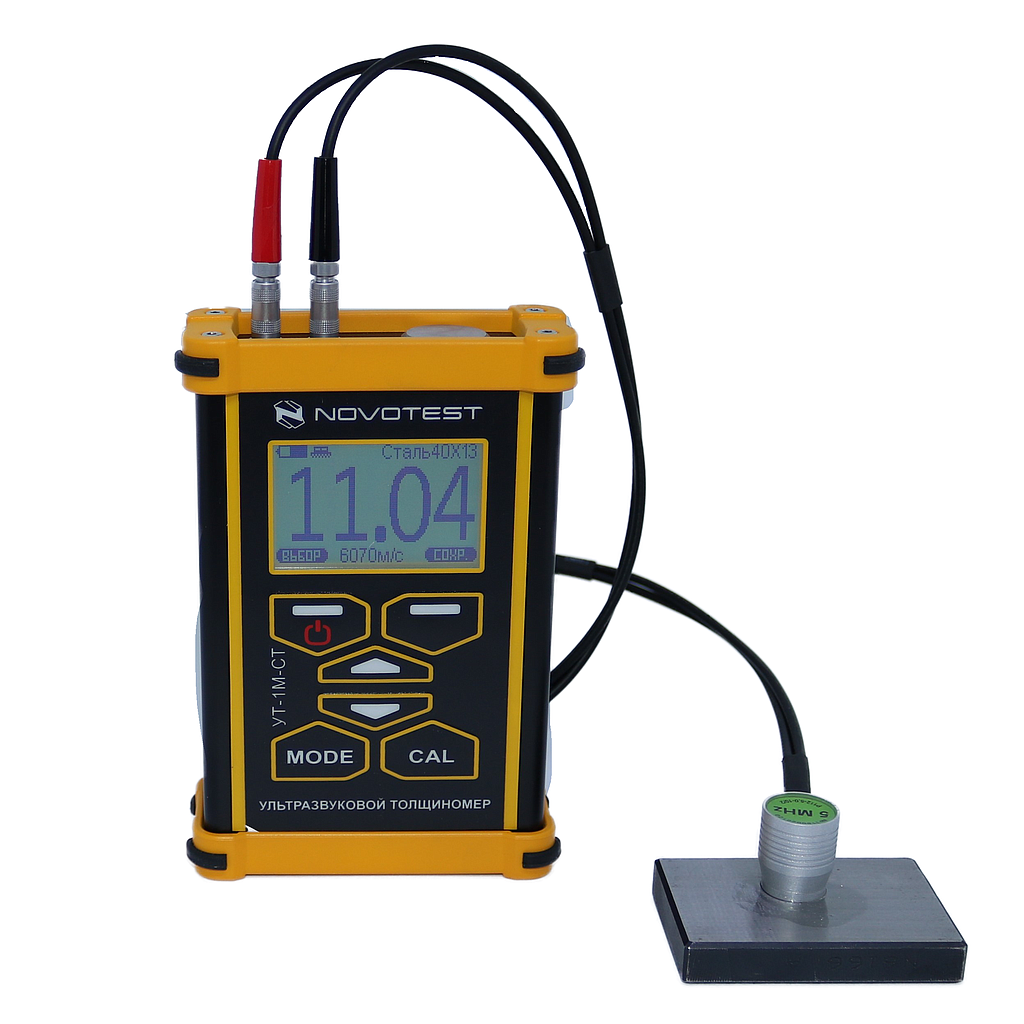

- Ultrasonic Thickness Gauge NOVOTEST UT-1M-ST is a special version of the thickness gauge in a metal enclosure, which is designed for extreme operating conditions, when there is a possibility of the device dropping or other damage of the unit during operation. The durable aluminum bodie’s profile withstands high static and dynamic compression loads, which allows the operator to use the device “carelessly”.
- Ultrasonic Thickness Gauge NOVOTEST UT-1M-ST is designed to measure the thickness of products with low attenuation of ultrasonic vibrations, with one-way access to them during their manufacture and operation.
Advantages:
- Unique additional protection of metal housing;
- Saved data can be transmit to PC;
- Material selection and automatic setting of ultrasound velocity;
- Large graphic display of high contrast and backlight;
- Display of measured thickness in mm and inches;
- Convenient menu in the device;
- Wide choice of UT probes with preset settings in the device;
- Modes of statistical processing of measurements;
- Ability to restore factory calibrations;
- Ability to adjust all parameters of the acoustic path;
- Ability of further adjusting the user gain directly from the measurement mode;
- Wide range of testing;
- Mode of audible and visual alarm when break the preset ranges.
