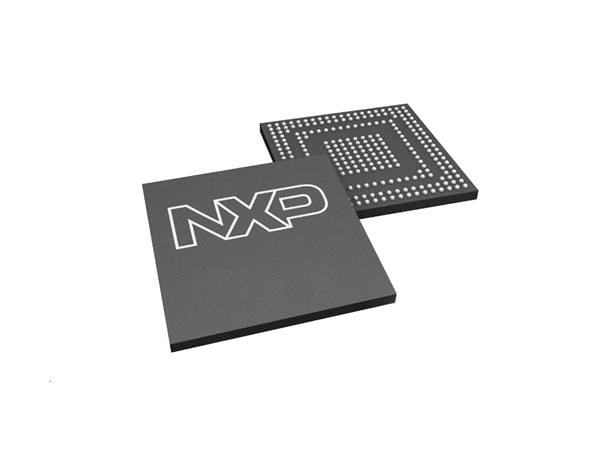

NXP MVF61NS151CMK50 Microprocessors - MPU A5-500, M4, L2 Cache Security

Core: ARM Cortex A5, ARM Cortex M4

Memory Type: DDR3 DRAM, LPDDR2 DRAM

Unit Weight: 1.390 g

Data RAM Size: 1.5 MB

Data ROM Size: 96 kB

Data Bus Width: 32 bit

Interface Type: CAN, ESAI, Ethernet, I2C, SAI, SPI, UART, USB

Mounting Style: SMD/SMT

Number of Cores: 2 Core

Watchdog Timers: Watchdog Timer

Instruction Type: Floating Point

Processor Series: VF6xx

Moisture Sensitive: Yes

L1 Cache Data Memory: 16 kB, 32 kB

Maximum Clock Frequency: 167 MHz, 500 MHz

Operating Supply Voltage: 3.3 V

L1 Cache Instruction Memory: 16 kB, 32 kB

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

L2 Cache Instruction / Data Memory: 512 kB
