Display

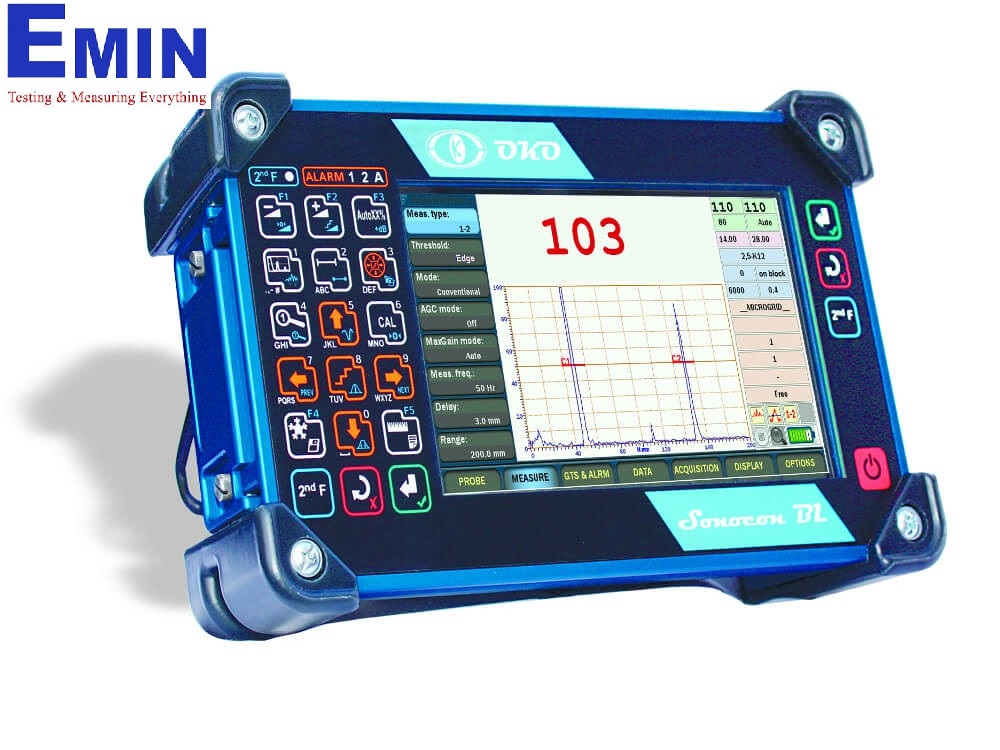

Size Sonocon BL: 7.2”
Resolution 800×480
Connectors
Probe connectors 2 × BNC or
2 × LEMO-1 or
2 × LEMO-00
Analog output Alarm
USB1 Type A
LAN ✔
Pulser
Types Spike + Square Wave (SWP)
Voltage (SWP) 50 V, 100 V,
150 V, 200 V,
250 V, 300 V,
400 V
Energy (SWP) 20 ns to 1000ns with 10 ns step Manual & Auto modes
Voltage (Spike) Low: 50 V,
High: 300 V
Damping ✔
PRF modes Comfort, Low,
Medium, High,
Manual
PRF from 15 to 6000 Hz
Phantoms control 3 modes
Receiver
Range (at steel longitudinal wave) 8 000 mm (314 in)
Gain 0 to110 dB,
with 0.1 dB step
Max signal input 20 V p-p
Bandwidth 0.2 MHz - 27 MHz
Filters 0.2-27 MHz,
0.2-10 MHz,
2.0-21.5 MHz,
8.0-26.5 MHz,
0.5-4 MHz,
0.2-1.2 MHz,
1.5-8.5 MHz,
5-15 MHz,
0.4 MHz,
0.5 MHz,
1 MHz,
1.25 MHz,
2 MHz,
2.25 MHz,
2.5 MHz,
3.5 MHz,
4 MHz,
5 MHz,
7.5 MHz,
10 MHz,
15 MHz,
20 MHz
Filters set choice ✔
Rectification RF, FW, Pos. HW,
Neg. HW
TCG (TVG) 110 dB;
110 dB/μs slope
Signal Average OFF / 2x / 4x / 8x / 16x / 32x / 64x
Reject (cutoff) 0-80% FSH
Measurement
Number of gates 2
Number of cursors 2
Modes 1, 2, C1, C2, 1-2, 1-C1, 1-C2, 2-C1, 2-C2, C1-C2
TOF Modes Peak, Edge (Flank)
Amplitude measurement up to 200% FSH
Units mm / in / us
Output fields 5
Alarm
Number of gates 2
Number of levels 3
Flaws evaluation
AWS ✔
DGS (AVG) ✔
DAC ✔
DAC: Number of points 128
DAC codes ASME & ASME III,
EN 1712, EN 1713,
EN1714, JIS Z3060,
GB11345, GB 4730
Custom DAC curves up to 6
DAC 20-80 ✔
DAC & TCG ✔
Memory
Setups ✔
Datasets (with A-Scans) ✔
Capacity 2 GB (up to 64 GB)
PC software ✔
Other Features
Coupling control ✔
AGC independent for both gates
Quick calibration ✔
Quick estimate (Best signal catch) ✔
Auto XX % (50% or 80%) ✔
Reference gain ✔
Peak hold (collect, peak memory) ✔
Signals compare ✔
Smart zoom ✔
Choice of menu systems Full
Simple 1
Simple 2
Keyboard backlight ✔
Smart (Context) keyboard backlight ✔
Number of keyboard shortcuts2 41
Physical
Dimensions Sonocon BL: 10×6.1×3.1"(256×156×80 mm3)
Weight incl. battery Sonocon BL: 5.3 lbs (2.4 kg)
Operating temp. range -30°C to 50°C (-22°F to 122°F)
Dust & water protection IP65
Battery life 8 h
Replaceable battery ✔
Included accessories: Main unit, Mascot Type 2542 charger, wrist strap, Software for processing test results on "UT" PC, Batteries, Bags or boxes, instructions for use
The above prices include 0, 45, 60, 75 and standard block
