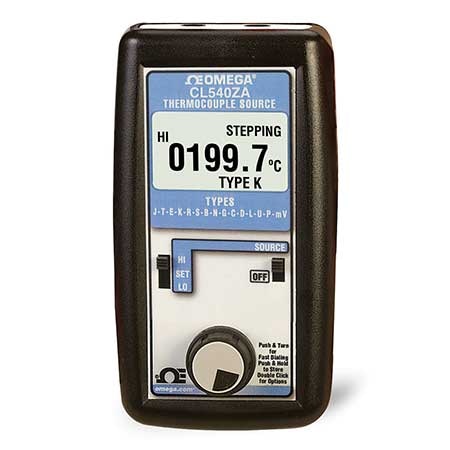

OMEGA CL540ZA 14 Thermocouple Types and Millivolt Calibrator & Simulator

Width: 69 mm

Height: 45 mm

Length: 126 mm

Weight: 238 g

Accuracy: ± 0.015 %

Weight Note: 238 g (8.4 oz) (including batteries)

Battery life: 50 hr

Display Type: LCD

Weight(Boot): 311.8 g

Accuracy Note: ± (0.015% of reading + 0.006 mV)

Supply Voltage: 6 Vdc

Voltage Source: Output Impedance: < 0.3 Ω Source Current: > 20 mA (drives 80 mV into 10 Ω) Noise: ≤ 4 microvolts p-p for frequencies of 10 Hz or below

Dimensions(Boot): 144 L x 78 W x 52 D mm

Display Type Note: High contrast graphic liquid crystal display, LED backlighting for use in low lit areas

Thermocouple Type: J, K, T, E, R, S, B, C, N, L, G, U, D

Weight Note(Boot): 311.8 g (11 oz) (including batteries)

Battery Indication: A low battery indication is displayed when the battery voltage drops below the operating level

Additional Features 1: Source Only

Relative Humidity Note: 10% ≤ RH ≤ 90% 0 to 35°C (32 to 95ºF), non-condensing. 10% ≤ RH ≤ 70% 35 to 60°C (95 to 140ºF), non-condensing

Relative Humidity, Max: 0.9

Relative Humidity, Min: 10%

Over-Voltage Protection: Over-voltage protection to 60 Vdc (rated for 30 seconds)

Cold Junction Compensation: ± 0.25°C

Operating Temperature, Max: 60 °C

Operating Temperature, Min: -25 °C
