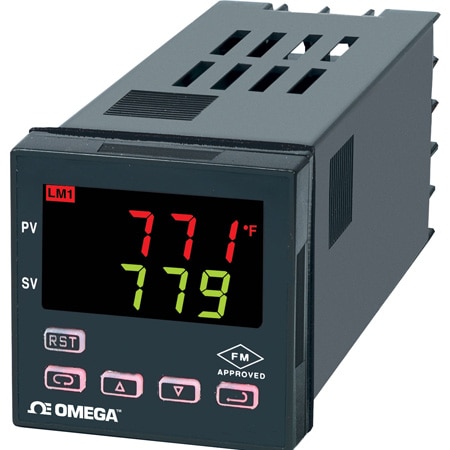

OMEGA CN7434-PV1 1/16 DIN Universal Process Limit Controller with Illuminated Keys (Thermocouple, ± 0.25 %, 4 Digit LED)

Weight: 227 g

Accuracy: ± 0.25 %

Bezel Size: 48 mm

Input Type: Thermocouple, RTD, mA, Voltage

Form factor: 1/16 DIN

Panel Depth: 133 mm

Display Size: 7.62 mm (0.30 in)

Display Type: 4 Digit LED

Accuracy Note: ±0.25% of span, ±1 least significant digit

DIN Rail Size: 0.0625 mm

Memory Backup: Non-Volatile

Output Detail: Relay Control Output Ratings: Resistive: SPST, 3 A @ 240 Vac Inductive: 1.5 A @ 240 Vac

Control Output: NO/NC relay, 0 to 20mA

Supply Voltage: 100 to 240 Vac

Measuring Range: Thermocouple Type K: -200 to 2500°F Type J: -100 to 1600°F Type T: -350 to 750°F Type E: -100 to 1800°F Type N: -100 to 2372°F Type R: 0 to 3200°F Type S: 0 to 3200°F Type B: 75 to 3308°F Type L(J DIN): -100 to 1600°F Type C: 0 to 4208°F RTD (2 wire) Pt100 RTD (0.00385): -200 to 875°C Pt100 RTD (0.00392): -200 to 875°C RTD, 120 Ω Nickel (0.00628): -80 to 320°C RTD, Pt1000 (0.00385): -200 to 875°C Process Current 0 to 20 mA, 4 to 20 mA: 1999 to 9999 Process Voltage 0 to 10Vdc, -10 to 10 Vdc, -10 to 10 mVdc: 1999 to 9999

Panel Thickness: 6.35 mm

Number of Inputs: 1

Cutout Dimensions: 45 x 45 mm

Display Type Note: Two 4-digit, 7-segment, 7.62 mm H (0.3") LEDs

Number of Outputs: 2

Power Consumption: 5 VA

Supply Power Note: 100 to 240 Vac, nominal, 10 to 15%, 50 to 400 Hz; single phase; 132 to 240 Vdc, nominal, 10 to 20% Selectable Input: 10 thermocouple, 4 RTD, DC voltage or DC current

Supply Power Type: AC

Additional Features 1: None

Temperature Sensor Type: Thermocouple

Operating Temperature, Max: 55 °C

Operating Temperature, Min: -10 °C
