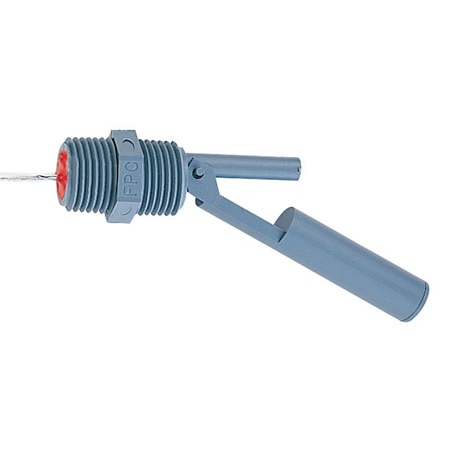

OMEGA LVN-91 NEMA-6 Side Mount Liquid Level Switches (PVDF, 1/2 in)

Approvals: CE, RoHS, UKCA, UL cULus

Insulation: PVC

Wire Gauge: 20 AWG

Switch Note: Approximately 1/2 the float travel in liquid of 1.0 specific gravity

Switch Type: SPST

Cable Length: 24 in

Switch Rating: 1 A @ 60 or 120 Vac/Vdc

Specific Gravity: 0.88

Switch Operation: Selectable Normally Open or Normally Closed

Enclosure Ratings: IP68, NEMA Type 6

Materials, Wetted: PVDF

Media Compatibility: Oil, Solvents, Water

Operating Pressure, Max: 100 psi

Process Connection Size: 1/2 in

Process Connection Type: NPT Male

Operating Temperature, Max: 82 °C

Operating Temperature, Min: -40 °C

Material Construction Option: PVDF
