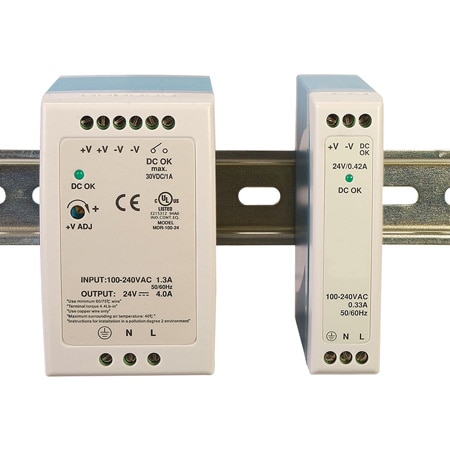

OMEGA SL-PS-S10048 Power Supplies, DIN Rail Mounting, 10 to 100 W for 5, 2, 4, 48 Vdc

Noise: 150 mVp-p

Width: 55 mm

Height: 90 mm

Length: 100 mm

Approvals: UL508, EN60950-1* approved, NEC Class 2/LPS compliant Harmonic Current: Compliance to EN61000-3-2,-5

Efficiency: 84 to 88%

EMC Standard: EN 50204, EN 55024, EN 61204-3A (heavy industry level), IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-6-2

Current Rating: 0.083333333333333

Inrush Current: Cold start 30A/115 Vac, 60A/230 Vac

Electrical Output: 48 Vdc

Power Consumption: 100 W

Supply Power Note: 85 to 264 Vac, 47 to 63 Hz, 120 to 370 Vdc

Voltage Tolerance: ± 1 %

Withstand Voltage: I/P-O/P: 3k Vac; I/P-FG: 1.5k Vac ;O/P-FG: 0.5k Vac

Operating Humidity: 20 to 90% RH non-condensing

Overload Protection: 105 to 150%, 31.2 to 36V

Additional Features 1: OK relay contact, 30V/1A resistive

Frequency Input Range: 47 to 63 Hz

Insulation Resistance: 100 M Ω

Line and Load Regulation: ±1%

Insulation Resistance Note: I/P-O/P, I/P-FG, O/P-FG: 100 M Ω/ 500 Vdc EMI compliance to EN55011, EN55022 (CISPR22), EN61204-3 Class B

Operating Temperature, Max: 70 °C

Operating Temperature, Min: -20 °C
