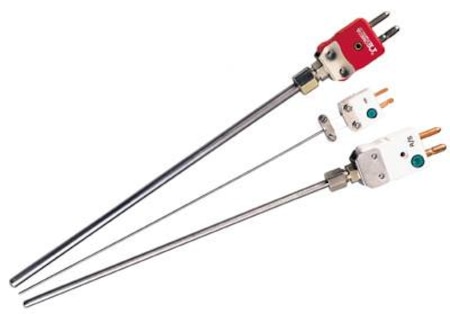

OMEGA XIN-P30R-U-062-30-M-SX-12 Extreme Temperature Exotic Thermocouple Probes (Thermocouple, B, 2200 °C)
Manufacturer: OMEGA Model: XIN-P30R-U-062-30-M-SX-12 - Contact
Wire Gauge: 30 AWG
Probe Length: 12 in
Junction Type: Ungrounded
Probe Diameter: 0.062 in
Sensing Element: None
Sheath Material: Inconel® 600
Probe Insulation: Magnesia
Thermocouple Type: B
Alloy Material (+): Platinum - 30% Rhodium
Alloy Material (-): Platinum - 6% Rhodium
Color Code Standard: ANSI
Electrical Connection: Ceramic Miniature Male Thermocouple Connector
Process Connection Size: N/A
Temperature Sensor Type: Thermocouple
Insulation Melting Point: 2790 °C
Process Temperature, Max: 2200 °C
Process Temperature, Min: 0 °C
Operating Temperature, Max: 1650 °C
Operating Temperature, Min: 0 °C
Calibration Temperature, Max: 1704 °C
Sheath Material Melting Point: 1400 °C
