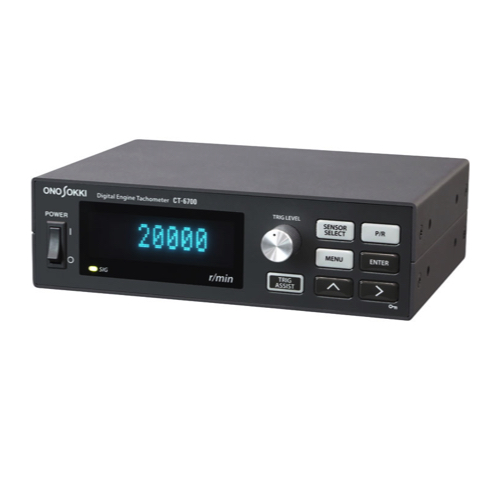

Onosokki CT-6700 Digital Engine Tachometer (9 - 28 VDC)

Applicable Detectors: IP-292/296, IP-3000A/3100, OM-1200/1500, VP-202/1220, LG-9200, MP-900/9000 series, MP-981, EXT(PULSE), ECU crank angle signal option

Power requirement:

9 to 28 VDC, 12 VA or less

AC adapter (100 to 240 VAC, 36 VA or less) Input cable with fuse clips on both ends (option)

Outer dimensions (mass): 170 (W) x 49 (H) x 120 (D) mm (approx. 700 g)

Operating temperature range: 0 to +50 °C*2

Operating humidity range: 5 to 85% (with no condensation)

CE marking:

Low Voltage Directive: 2014/35/EUEN61010-1 class 1 (When AC adapter is used.)

EMC Directive : 2014/30/EUEN61326-1 class , Industrial Environment

RoHS Directive: 2011/65/EUEN50581

FCC: 47 CFR Part 15 Subpart B Class A

Accessory

Rubber foot x 4

AC adapter x 1 (100 to 240 VAC) Instruction Manual x 1
