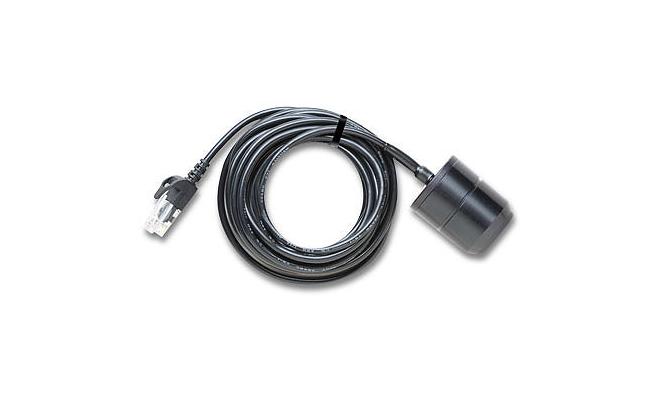

Onset S-LIB-M003 Solar Radiation (Silicon Pyranometer) Smart Sensor (0~1280 W/m2)

Measurement range: 0 to 1280 W/m2

Operating temperature range: -40° to 75°C (-40° to 167°F)

Accuracy: ±10 W/m2 or ±5%, whichever is greater in sunlight. Additional temperature induced error ±0.38 W/m2 /°C from 25°C (0.21 W/m2/°F from 77°F)

Resolution: 1.25 W/m2

Spectral range: 300 to 1100 nm

Cosine response error: ±5%, 0° to 70°; ±10%, 70° to 80° from vertical

Azimuth error: ±2% error at 45° from vertical, 360° rotation

Calibration: Factory recalibration available

Dimensions: 4.1 cm high x 3.2 cm diameter (1 5/8 in. x 1 1/4 in.)

Approximate weight: 120 g (4 oz)

Cable length: 3 m (9.8 ft)

Length of Smart Sensor Network Cable: 3 m

Measurement parameters: average over logging interval, user-defined sampling interval from 1 second

The silicon pyranometer smart sensor is designed to work with HOBO® stations. The smart sensor has a plug-in modular connector that allows it to be added easily to a station. All calibration parameters are stored inside the smart sensor, which automatically communicates configuration information to the logger without any programming, calibration, or extensive user setup.
