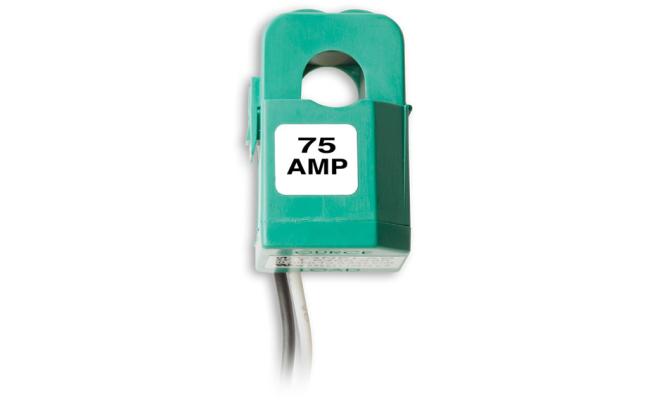

Onset T-MAG-0400-75 75 AMP Mini Split-core AC Current Transformer Sensor (7.5~75 AMP)
Manufacturer: Onset Model: T-MAG-0400-75 P/N: T-MAG-0400-75 - Contact
Rated input: from 7.5 to 75 AMP
Output: 0.333 Volt AC at rated current
Operates: from 50 Hz to 400 Hz
Linearity accuracy: ± 1%
8 ft. twisted-pair lead
Accuracy: at 10% to 130% of rated current
Self-locking mechanism guaranteed for 500 closing
Width: 1.00 inches
Height: 1.56 inches
Thickness: 1.05 inches
Window: 0.40 inches
Details
A small 75 AMP split-core AC Current Transformer (CT) mounted around a current carrying wire to measure AC amperage; used with HOBO data loggers via the FlexSmart TRMS module and with kWh transducers (WattNodes) for True RMS measurement of sinusoidal and non-sinusoidal waveforms. For use with HOBO H22, U30, and RX3000 Series Data Loggers
Manual
