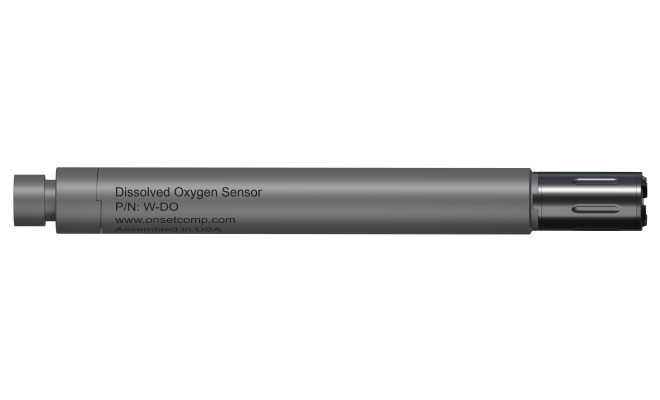

Onset W-DO Dissolved Oxygen Sensor (0~60 mg/L)
Manufacturer: Onset Model: W-DO P/N: W-DO - Contact
Dissolved Oxygen:
Optical Sensor: (dynamic luminescence quenching)
Measurement Range: 0 to 60 mg/L; 0-600% Saturation
Accuracy: Out-of-box: ±0.2 mg/L (typical) over the range of 0 to 20 mg/L
±4% over the range of 20 to 60 mg/L
With user calibration: ±0.1 mg/L over the range of 0 to 20 mg/L; ±2% over the range of 20 to 60 mg/L
Resolution: 0.01 mg/L
Response Time: To 90% in less than 45 sec
Temperature:
Temperature Measurement/Operating Range: -5 to 50°C (23 to 104°F), non-freezing
Temperature Accuracy: 0.15°C (0.27°F)
Temperature Resolution: 0.01°C (0.04°F)
Response Time: To 90% in less than 15 minutes
What's In The Box:
Dissolved oxygen sensor
Dissolved oxygen sensor cap
Calibration boot and sponge
The dissolved oxygen sensor is an interchangeable sensor that works with HOBO MX800 Series Water Loggers to measure dissolved oxygen and temperature.
The DO sensor can be attached directly to the fully submersible MX801 model, or attached via cable to the direct read MX802 model, which doesn't require having to pull the sensor out of the water to download data.
When this sensor is connected to a HOBO MX800 logger that also has a conductivity or CTD sensor attached, the logger can record salinity-adjusted DO directly. With this sensor attached to the HOBO MX802 direct read model, the logger can calculate DO percent saturation directly. When used with fully submersible HOBO MX801 model, a barometric logger data file (from either an MX802 or MX2001 logger) is needed to calculate DO percent saturation, for post-processing in the HOBOconnect app. In waters with changing salinity, the logger must also have a salinity sensor attached or you will need an MX800 salinity data file to get DO percent saturation.
