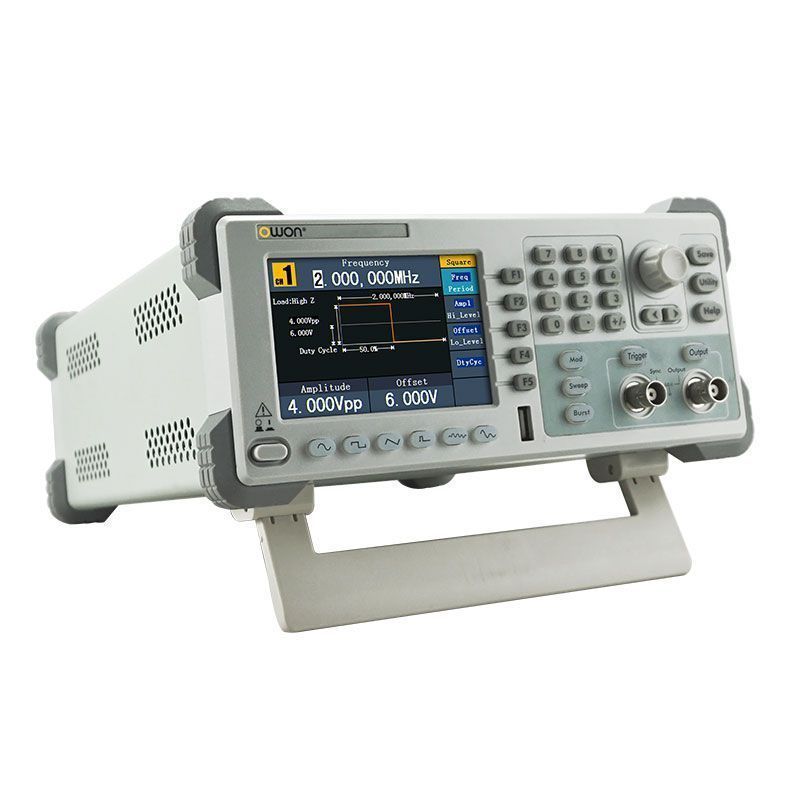

OWON AG051 Single-channel Arbitrary Waveform Generator (5MHz, 1 CH)
Manufacturer: OWON Model: AG051 Origin: China Guarantee: 12 Month - Contact
Specifications
Channel single
Frequency Output 5MHz
Sample Rate 125MS/s
Vertical Resolution 14 bits
Waveform Standard Sine, Square, Pulse, Ramp, and Noise Arbitrary
Waveform Exponential Rise, Exponential Fall, Sin(x)/x, Step Wave, and others, total 45 built-in waveforms, and user-defined arbitrary waveform.
Frequency (resolution 1μHz)
Sine 1μHz - 5MHz
Square 1μHz - 5MHz
Pulse 1μHz - 5MHz
Ramp 1μHz - 1MHz
Noise 5MHz (-3dB) (typical)
Arbitrary Waveform 1μHz - 5MHz
Memory 64M byte
Communication Interface USB device
Dimension (W×H×D) 235 × 110 × 295 (mm)
Weight (without package) 3.00 kg
