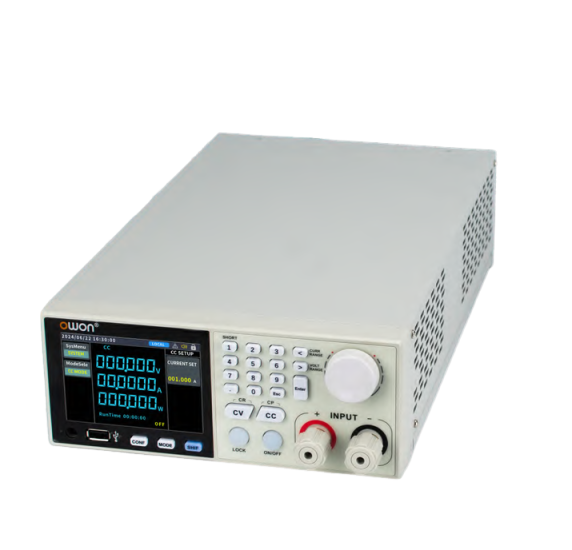

OWON OEL8511 DC Electronics Load (200W, 0-150V/20A)

Rated input

Voltage: 0 - 150V

Current: 0 - 20A

Power: 200W

Minimum Operate Voltage: 0.8V@20A

Range (CV): 0 - 150V

Resolution (CV): 1mV

Range (CC): 0 - 20A

Resolution (CC): 1mA

Range (CR): 0.05Ω - 7.5kΩ

Range (CP): 400W

Resolution (CP): 10mW

Dynamic Mode

T1&T2: 0.1ms - 50s

Rise/Fall Slope: 0.01A/ms-2000A/ms

Minimum Rise Time: 20us

Readback Range (V): 0 - 150V

Readback Resolution (V): 1mV

Readback Range (A): 0 - 20A

Readback Resolution (A): 0.1mA

Readback Range (w): 0 - 200W

Readback Resolution (w): 10mW

Protection: Overpower Protection, Overvoltage Protection, Overcurent Protection, Overtemperature

Short: CC mode, CV mode. CR mode

Interface: RS-232 support SCPI

Safety: Complies with European EMC Directive 89/336/EEC for Class A testing and measurement products

Withstand Voltage: 500V/DC, 1mA (output to ground); 1.5kVAC, 5mA (input to ground)

Dimension (W/H/D): 215 x 88 x 375 mm

Weight (KG): 4.2
