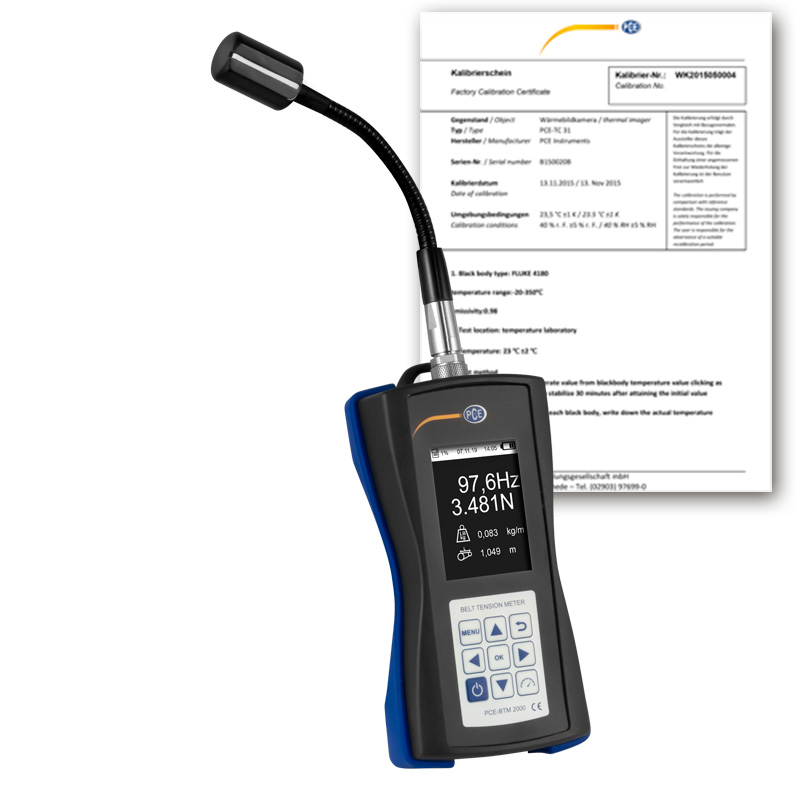

PCE BTM 2000-ICA Belt Tension Meter (10 ... 900 Hz, incl. ISO Calibration Certificate)

Measuring range: 10 ... 900 Hz

Accuracy: ± (1% of rdg. + 4 digits)

Repeatability accuracy: ± 1 Hz

Resolution: <100 Hz: 0.1 Hz; >100 Hz: 1 Hz

Belt length: max. 9,999 m

Belt mass: max. 9,999 kg/m

Memory: 750 measured values; 15 sets of 50 measuring points

Menu languages: German, English, Spanish,French, Italian, Dutch

Power supply: 3 x 1.5 V AAA batteries

Operating conditions: 0 ... 50 °C / 32 ... 122 °F; max. 95 % R.H.

Storage conditions: -20 ... 65 °C / -4 ... 149 °C; max. 95 % R.H.

Dimensions: 150 x 80 x 38 mm / 5.9 x 3.1 x 1.4"

Weight: ca. 200 g / 7 oz incl. batteries

Delivery Scope:

1 x Belt Tension Meter PCE-BTM 2000

1 x Standard sensor head

1 x Magnetic holder

3 x 1.5 V AAA battery

1 x Operating instructions

1 x Carrying bag

1 x ISO Calibration Certificate

N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.

Manual

Software Manual

CE Certificate
