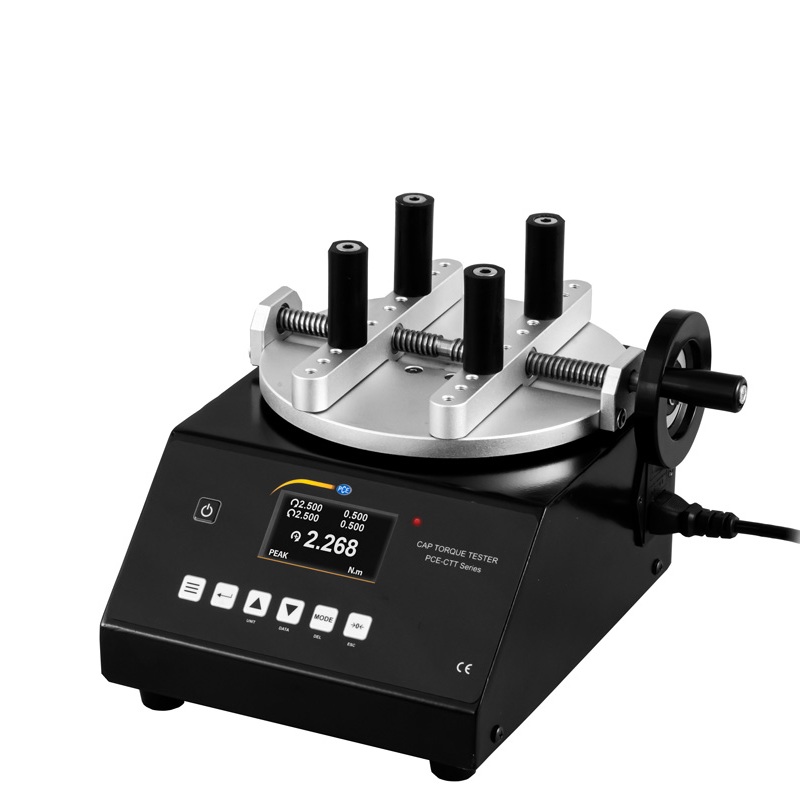

PCE CTT 5 Torque Meter (5 Nm)

Measuring range: 5 Nm

Resolution: 0.002 Nm

Accuracy: 0.3% of the measuring range

Unit: Nm, kgFcm, lbFin

Direction of rotation: Left and right direction of rotation

Clamping pins/sample grips: Rubberized

Data memory: For up to 100 measured values

Interface: USB

Display: LCD graphic display

Power supply: 230V/110V

Sample size: 20~200 mm/0.8~7.9 in, in diameter

Ambient conditions: 5~45°C/41~113°F, 35~65 % r.H.

Dimensions: 280 x 210 x 200 mm/11 x 8.3 x 7.9 in

Weight: ≈ 9 kg/19 lbs

Delivery scope:

1 x Torque meter for drinking bottles PCE-CTT 5

1 x USB cable

1 x IEC cable

1 x Software

1 x M6 hexagon socket

1 x M5 hexagon socket

4 x Rubber feet

4 x Rubberized sample holders

1 x Instruction manual

Datasheet
