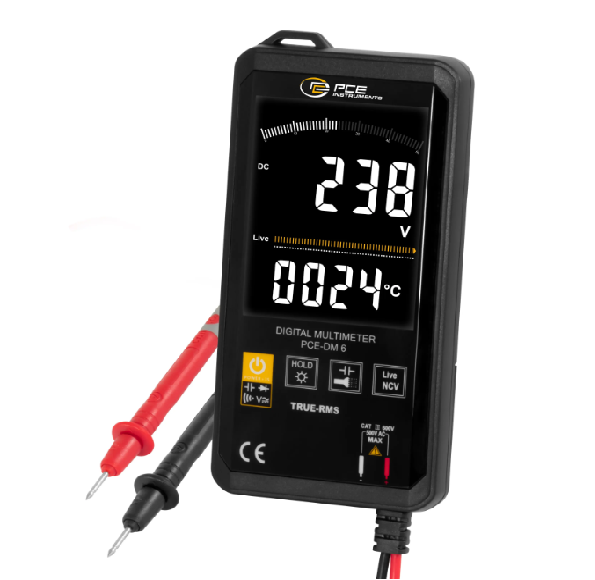

PCE DM 6 Digital Multimeter (1000VDC, 750VAC, True RMS)

Direct voltage DC

Measurement range up to : 0 ... 6 V

Resolution: 0.001 V

Accuracy: ±(0.8 % of Rd +5 digits)

Overload: 1000 V

Direct voltage DC

Measurement range up to: 6 ... 60 V

Resolution: 0.01 V

Accuracy: ±(0.8 % of Rd +5 digits)

Direct voltage DC

Measurement range up to: 60 ... 600 V

Resolution: 0.1 V

Accuracy: ±(0.8 % of Rd +5 digits)

Direct voltage DC

Measurement range up to: 600 ... 1000 V

Resolution: 1 V

Accuracy: ±(0.8 % of Rd +10 digits)

Capacity

Measurement range up to: 0 ... 10 nF

Resolution: 10 pF

Accuracy: ±(3.5 % of Rd +20 digits)

Capacity

Measurement range up to: 10 ... 100 nF

Resolution: 100 pF

Accuracy : ±(3.5 % of Rd +20 digits)

Capacity

Measurement range up to: 0.1 ... 1 µF

Resolution: 1 nF

Accuracy: ±(3.5 % of Rd +20 digits)

Capacity

Measurement range up to: 1 ... 10 µF

Resolution: 10 nF

Accuracy: ±(3.5 % of Rd +20 digits)

Capacity

Measurement range up to: 10 ... 100 µF

Resolution: 100 nF

Accuracy: ±(3.5 % of Rd +20 digits)

Capacity

Measurement range up to: 0.1 ... 1 mF

Resolution: 1 µF

Accuracy: ±(3.5 % of Rd +20 digits)

Capacity

Measurement range up to: 1 ... 10 mF

Resolution:10 µF

Accuracy: ±(3.5 % of Rd +20 digits)

Capacity

Measurement range up to: 10 ... 60 mF

Resolution: 100 µF

Accuracy: ±(5 % of Rd +3 digits)

AC voltage

Measurement range up to: 0 ... 6 V

Resolution: 0.001 V

Accuracy: ±(0.8 % of Rd +5 digits)

Overload: 750 V

Frequency range: 50 ... 1000 Hz

AC voltage

Measurement range up to : 6 ... 60 V

Resolution: 0.01 V

Accuracy: ±(0.8 % of Rd +5 digits)

Frequency range: 50 ... 1000 Hz

AC voltage

Measurement range up to: 60 ... 600 V

Resolution : 0.1 V

Accuracy: ±(0.8 % of Rd +5 digits)

Frequency range: 50 ... 1000 Hz

AC voltage

Measurement range up to: 600 ... 750 V

Resolution : 1 V

Accuracy: ±(0.8 % of Rd +10 digits)

Frequency range: 50 ... 1000 Hz

Resistance

Measurement range up to: 0 ... 600 Ω

Resolution: 0.1 Ω

Accuracy: ±(0.8 % of Rd +5 digits)

Resistance

Measurement range up to: 0.6 ... 6 kΩ

Resolution: 1 Ω

Accuracy: ±(0.8 % of Rd +3 digits)

Resistance

Measurement range up to: 6 ... 60 kΩ

Resolution: 10 Ω

Accuracy: ±(0.8 % of Rd +3 digits)

Resistance

Measurement range up to: 60 ... 600 kΩ

Resolution: 100 Ω

Accuracy: ±(0.8 % of Rd +3 digits)

Resistance

Measurement range up to: 600 ... 6000 kΩ

Resolution: 1 kΩ

Accuracy: ±(0.8 % of Rd +3 digits)

Resistance

Measurement range up to: 6 ... 60 M Ω

Resolution: 10 kΩ

Accuracy: ±(2.5 % of Rd +3 digits)

Frequency

Measurement range up to: 0 ... 10 Hz

Resolution: 0.01 Hz

Accuracy: ±(0.1 % of Rd +3 digits)

Frequency

Measurement range up to: 10 ... 100 Hz

Resolution: 0.1 Hz

Accuracy : ±(0.1 % of Rd +3 digits)

Frequency

Measurement range up to: 0.1 ... 1 kHz

Resolution: 1 Hz

Accuracy: ±(0.1 % of Rd +3 digits)

Frequency

Measurement range up to: 1 ... 10 kHz

Resolution: 10 Hz

Accuracy: ±(0.1 % of Rd +3 digits)

Frequency

Measurement range up to: 10 ... 100 kHz

Resolution: 100 Hz

Accuracy: ±(0.1 % of Rd +3 digits)

Frequency

Measurement range up to: 0.1 ... 1 MHz

Resolution : 1 kHz

Accuracy: ±(0.1 % of Rd +3 digits)

Frequency

Measurement range up to: 1 ... 10 MHz

Resolution: 10 kHz

Accuracy: ±(0.1 % of Rd +3 digits)

General technical data

Measuring functions: HOLD

Display type: LCD

Display size: 3.1 Inch

Measuring rate: 3 x per second

Standard(s): IEC 1010

Automatic power-off: 5 min

Safety standard: CAT III 600 V

max. input impedance: 10 M Ω

Measurement range selection: Automatic, Manual

Diode test: Test current: 1 mA

max. voltage: 3 V

Display range: 6000 counts

Menu language: English, English (GB)

Protection class (device): IP20

Weight: 149 g

Operating conditions: 0 ... 40 °C , 0 ... 80 % RH

Storage conditions: 0 ... 40 °C , 0 ... 80 % RH

(Rechargeable) battery: 2 x 1,5 V AAA battery , Alkali-manganese

Capacity: 1200 mAh

Dimensions ( L x W x H ): 138 x 68 x 18 mm

Electrical specification (Direct voltage DC, Capacity, AC voltage, Resistance,...) see on Datasheet

Delivery Scope

1 x Voltmeter PCE-DM 6

1 x set of test leads

2 x 1.5 V AAA battery

1 x user manual
