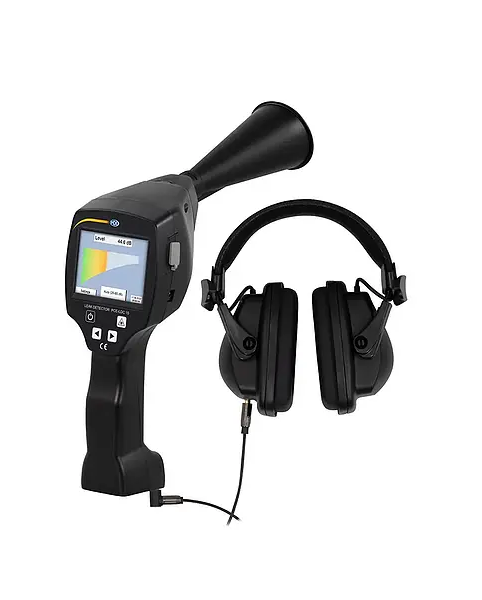

PCE LDC 15 Leak Detector (630~660 nm)

Working frequency: 40 kHz (± 2 kHz)

Laser: wavelength 630 ... 660 nm, output power; <1mW (laser class 2)

Color display: 3.5“ touch panel TFT

Connections:

3.5mm jack plug for headphones, power supply socket for connecting an external charger

USB port for software updates

Power supply: internal 7.4 V lithium-ion battery

Charging time: max. 4 hours

Operating time: >10 h (continuous operation)

Degree of protection: IP20

Operating conditions: -5 ... +50 °C / 23 ... 122 °F, <95% RH, non-condensing

Storage conditions: -20 ... 60 °C / -4 ... 140 °F, <95% RH, non-condensing

Altitude: 4000 m above sea level

Permitted Pollution degree: 2

Dimensions: 263 x 96 x 280 mm / 10.3 x 3.7 x 11" (with preamplifier and horn)

Weight: 0.55 kg / 1.2 lb with preamplifier and horn, complete set in case approx. 3.0 kg / 6.6 lb

Delivery Scope:

1 x Leak Detector PCE-LDC 15

1 x Carrying case

1 x Mains power adapter

1 x Straightening tube with tip

1 x Sound horn

1 x Headphones

1 x Instruction manual
