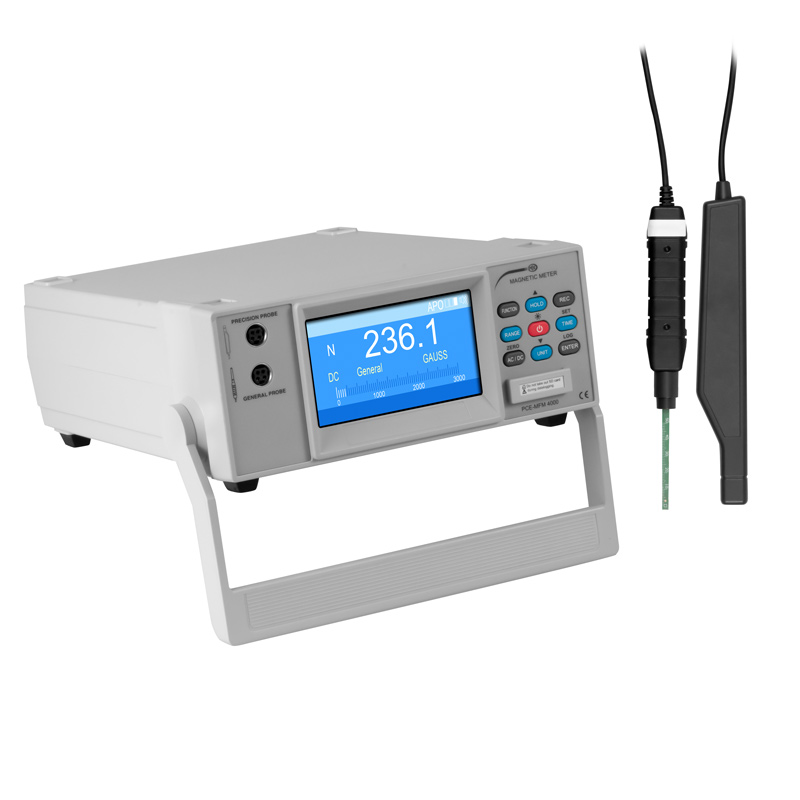

PCE MFM 4000 Electromagnetic Field Meter

- Measuring function: DC magnetic field precision sensor:

Measuring range: ± 30µT; ± 300 µT; ± 300 mG; ± 3000 mG

Resolution: 0.01 µT; 0,1μT; 0.1 mG; 1 mG

Accuracy:

± (2% of MB + 2 mG)

@ ± 100µT / 1000 G

- Measuring function: DC magnetic field standard sensor:

Measuring range: ± 300 mT; ± 3000 mT; ± 3000 G.; ± 30000 G.

Resolution: 0.01 mT; 0.1 mT; 0.1 g; 1 G

Accuracy: ± (5% of VAT + 10 Dgt)

- Measuring function AC magnetic field standard sensor 50/60 Hz:

Measuring range: 30μT; 300 µT; 300 mG; 3000 mG

Resolution: 0.01 µT; 0,1μT; 0.1 mG; 1 mG

Accuracy:

± (2% of MB + 2 mG)

@ 0 ... 100µT / 1000 G

- Measuring function AC magnetic field precision sensor 50/60 Hz:

Measuring range: 30μT; 300 µT; 300 mG; 3000 mG

Resolution: 0.01 µT; 0,1μT; 0.1 mG; 1 mG

Accuracy:

± (2% of MB + 2 mG)

@ 0 ... 100µT / 1000 G

- Measuring function AC magnetic field standard sensor 50/60 Hz:

Measuring range: 150 mT; 1500 mT; 1500 g; 15000 G.

Resolution: 0.01 mT; 0.1 mT; 0.1 g; 1 G

Accuracy: ± (5% of VAT + 10 Dgt)

- General technical data:

Measuring rate: 1 second

Measuring direction: Uniaxially

Display: LCD display

Features: Data hold / max. Min. Memory

Storage: Data logger single value memory

Data logger storage rate: 1, 2, 5, 10, 30, 60, 120, 300, 600, 1800, 3600 s

Interface: Serial

Environmental conditions: 0 ... 50°C / 32 ... 122°F, max. 85% RH

Power supply: 6 x 1.5V AA batteries; Optional 9V power supply

Current consumption: Approx. 138-mA

Dimension:

Device: 292 x 236 x 98 mm / 11.5 x 9.3 x 3.9 in

Precision sensor: 195 x 25 x 19 mm / 7.7 x 1 x 0.7 in

Standard sensor: 177 x 29 x 17 mm / 7 x 1.1 x 0.7 in

Weight : 275 g / < 1 lb

Delivery Scope:

1 x Gaussmeter PCE-MFM 4000

1 x Standard Sensor Range: 0-3000 milli-Tesla (0-30,000 Gauss)

1 x Precision Sensor Range: 0-300 micro-Tesla (0-3000 milli-Gauss)

1 x SD memory card

6 x 1.5V AA batteries

1 x Instruction manual
