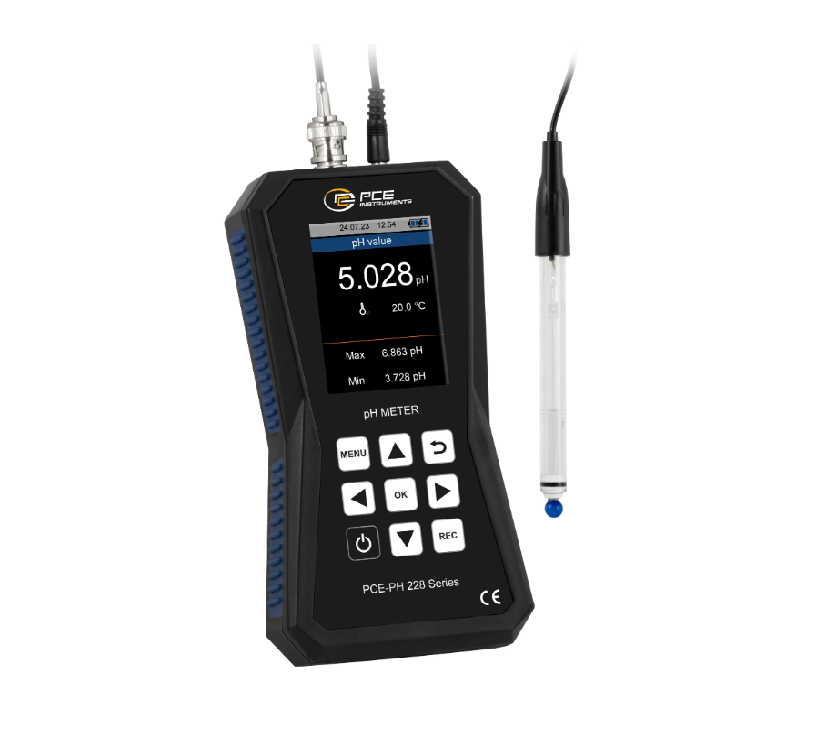

PCE PCE-PH 228HTE Water analyser (20 pH; 2000 mV)

pH

Measurement range up to: -2 ... +20 pH

Resolution: 0.001 pH

Accuracy: ±0.002 pH +2 digits

Electrode

Designation: PCE-PH-HTE

Measurement range up to: 0 ... 14 pH

Temperature range: 0 ... 80 °C

Application: Aqueous non-corrosive media

Reference electrolyte: AgCl/Ag

Shank material: Glass

Shank length: 120mm

Shank diameter: 12 mm

Cable length: 1 m

Redox

Measurement range up to: -2000 ... +2000 mV

Resolution: 1 mV

Accuracy: ±2 mV

Temperature sensor

Measurement range up to: -20 ... +100 °C

Resolution: 0.1 °C

Accuracy: ±0.5 °C (@ 20 °C)

General technical data

Measuring functions: MIN, MAX

Display type: LCD with backlight

Display size: 2.8 Inch

Storage medium: Internal memory

Storage capacity: 32 GB

Memory capacity (additional information): 100 recordings with a maximum of 100,000 data points per recording

Storage interval from: 1 s

Storage interval to: 12 h

Interface: USB-C

Number of calibration points: 5

Menu language: Turkish, English, Polish, Spanish, German, Chinese, Russian, Japanese, French, Danish, Italian, Dutch, Portuguese

Protection class (device): IP52

Power supply: 5 V DC, 500 mA

(Rechargeable) battery: 1 x 3.7 V LP785060 , Lithium polymer battery

Capacity: 2500 mAh

Operating conditions: -20 ... 65 °C , 10 ... 95 % RH

Storage conditions: -20 ... 65 °C , 10 ... 95 % RH

Dimensions ( L x W x H ): 178 x 85 x 32 mm

Weight: 252 g

Delivery Scope

1 x Water Analyser PCE-PH 228HTE

1 x pH electrode PCE-PH-LIQ

1 x temperature sensor

1 x service bag

1 x USB-C cable

1 x quick start guide
