Torque
Measurement range up to: 0.01 ... 500Nm
Resolution: 0.01 Nm
Accuracy: ±0.01 % of Rd
Torque
Measurement range up to: 0.1 ... 5105.2 kgfcm
Resolution: 0.1 kgfcm
Accuracy: ±0.01 % of Rd
Torque
Measurement range up to: 0.1 ... 4432.2 lbf-in
Resolution: 0.1 lbf-in
Accuracy: ±0.01 % of Rd
General technical data
Storage medium: Internal memory
Storage capacity: 999 Data records
Interface: USB, RJ45
Alarm: optical, Acoustic
Alarm modes: lower limit, upper limit
Dimensions: Length range: 130... 750 mm
Angle of rotation: 0 ... 60°
Max. lifting height: 130mm
Menu language: English (GB), English, Chinese
Protection class (device): IP20
Power supply: 220 V AC | 50 Hz
Connector type: Schuko plug
Operating conditions: -10 ... 40 °C , 0 ... 90 % RH
Storage conditions: -10 ... 40 °C , 0 ... 90 % RH
Dimensions ( L x W x H ): 730 x 400 x 500 mm
Weight: 47.8 kg
Delivery Scope

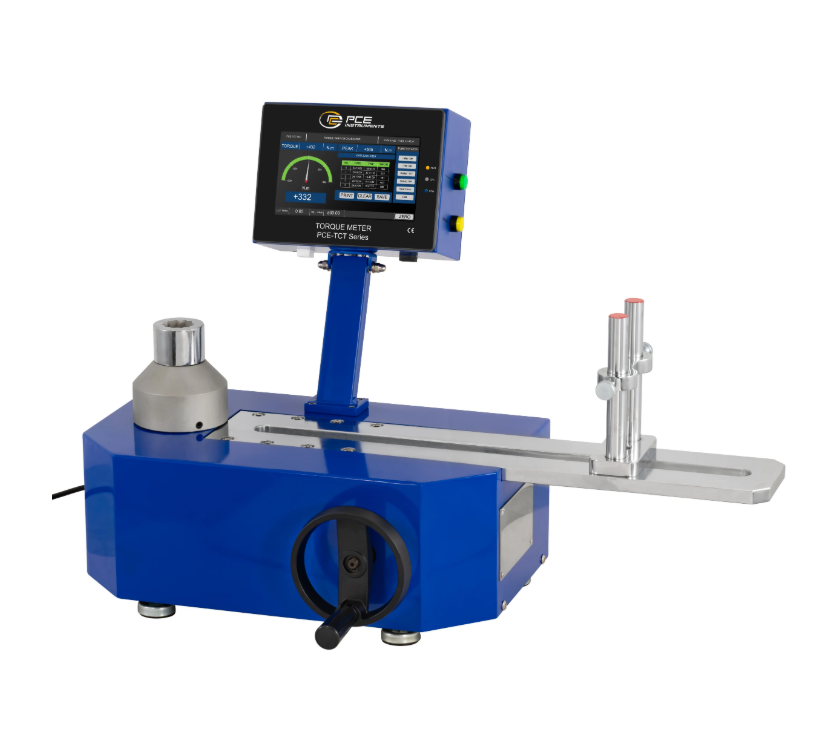

1 x Material Tester PCE-TCT 500
1 x multi-tooth adaptor
1 x 1/4" adaptor
1 x 3/8" adaptor
1 x 1/2" adaptor
1 x open-end wrench 17/19
1 x Allen key
1 x IEC cable
