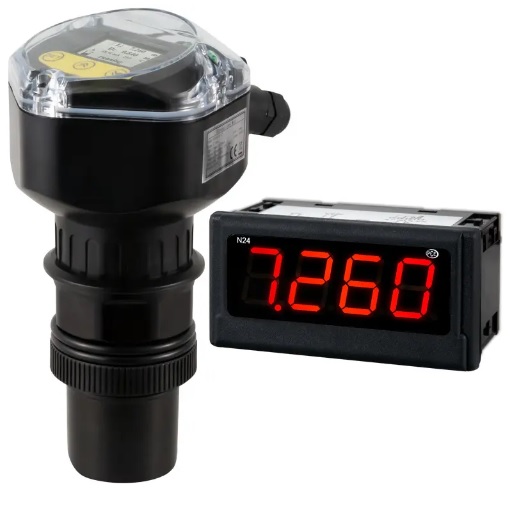

PCE ULM-10-N24S Level Indicator (0~10 m; 0.001 m)

Measuring range: 0 ...10 m / 0 ... 32.8 ft*

Accuracy: 0.5 %

Resolution: 0.001 m

Minimum distance to the wall: 1 m / 3.3 ft

Resolution of the temperature display: 0.1 °C

Output signal: 4 ... 20 mA

Output signal resolution: 0.01 mA

Connection: 2-wire, PE

Power supply: 24 V DC

Protection class: IP 66

Connection thread: M60

Connection thread cable glands: M18 x 1.5

Ambient conditions: -20 ... 60 °C / -4 ... 140 °F

Dimensions: 110 x 140 x 215 mm / 4.3 x 5.5 x 8.5"

Weight: ca. 825 g / 1.8 lbs

*the measuring range only applies under the following conditions:

- the measuring medium is a liquid

- there are no turbulences

- there are no dusts or vapors between the medium and the sensor

- the temperature difference between the sensor and the medium is <20 °C / 68 °F

Digital display PCE-N24S

Input (selectable):

0 ... 20 mA

4 ... 20 mA

0 ... 60 mV

0 ... 10 V

± 60 mV

± 10 V

Accuracy: ± (0.2 % full scale + 1 dgt.)

Internal resistance: 10 Ω ± 1 %

Scaling: 2-point

Display: 4-digit 7-segment LED display, height: 20 mm / 0.78"

Display range: -1999 ... 9999

Ambient temperature:

in operation: -10 °C ... 55 °C / 14 °F ... 131 °F

Storage: -25 °C ... +85 °C / -13 °F ... 185 °F

Dimensions: 96 mm x 48 mm x 64 mm / 3.77 x 1.88 x 2.51"

Control panel cut-out: 92 mm x 45 mm / 3.6 x 1.7" (according to DIN)

Supply voltage (selectable):

230 V AC

110 V AC

24 V AC

85 ... 253 V AC / DC

20 ... 40 V AC / DC

Sensor supply (selectable): 24 V DC / 30 mA

Degree of protection: front: IP 65

Weight: < 200 g / 7 oz

Mounting: mounting clips with clamping screws

Connection: via terminal strip

Housing: robust plastic housing

Delivery Scope:

1 x Level indicator PCE-ULM-10-N24S

1 x Built-in display PCE-N24S

4 x Mounting hardware

1 x Gasket

1 x Instruction Manual

NB: The display is delivered in the selected configuration without scaling of the measurement signal. The programming adapter PCE-PD14 is required to scale the display device!
