Specification
PCE-322A
Noise levels:
Low: 30 ... 80 dB
Medium: 50 ... 100 dB
High: 80 ... 130 dB
Auto: 30 ... 130 dB
Dynamic range:50 dB
Display:4-digit LCD
Resolution:0.1 dB
Accuracy:±1.4 dB
Sampling rate:2 x per second
Frequency:31.5 Hz ... 8 kHz
Storage capacity:32,700 readings (9 hours @ 1 second interval)
Frequency weighting:A and C
Time weighting:Fast (125 ms)
Slow (1 sec.)
Microphone type:Electret condenser
Functions:MIN, MAX, HOLD, ALARM
Analog output:AC/DC millivolt
Headphone
Data interface:USB port
Automatic shutdown:After 15 minutes inactivity
Operating conditions:0 ... +40 °C / +32 ... +104 °F, < 90 % RH
Storage conditions:-10 ... +60 °C / +14 ... +140 °F, 10 ... 75 % RH
Power supply:9 V block battery (for approx. 30 h continuous operation)
AC power
Dimensions:280 x 95 x 45 mm / 11.02 x 3.74 x 1.77"
Weight:Approx. 350 g / 0.78 lb
Standards:IEC 61672-1 Class II
Delivery contents

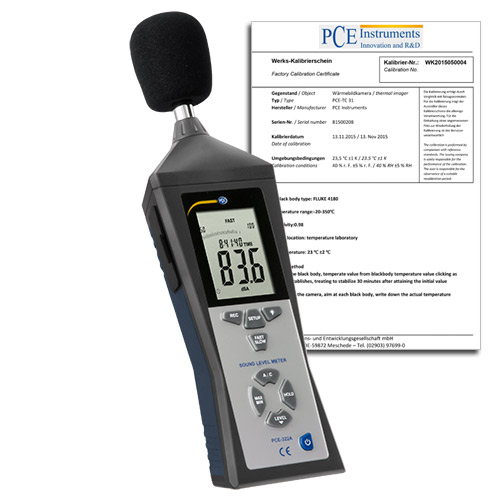

1 x PCE-322A-ICA noise meter / sound meter
1 x wind noise suppressor
1 x USB cable
1 x mini tripod
1 x calibration screwdriver
1 x battery
1 x power adapter
1 x carrying case
1 x user manual
1 x iso calibration certificate
