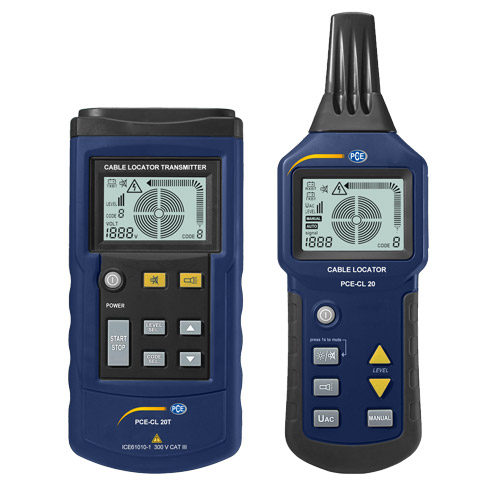

PCE CL 20 Cable Detector

Specifications

Output: 125 kHz

External Voltage Identification Area: DC 12 ... 400 V ± 2.5%; AC 12 ... 400 V (50 ... 60 Hz) ± 2.5%

Display: LCD

Maximum Voltage: Max. 400 V AC / DC

Overvoltage Category: CAT III 300 V

Pollution Degree: 2

Power Supply: 9 V battery

Power Consumption (minimum voltage): approximately 31 mA

Power Consumption (maximum voltage): about 115 mA

Backup: F 0.5 A 500 V, 6.3 mm x 32 mm / 0.24 x 1.25in

Operating Conditions: 0 ... +40 ° C/+32 ... +72 ° F; rel. Humidity <80%

Storage Conditions: -20 ... +60 °C /+12 ... +92 ° F; rel. Humidity <80%

Dimensions: 190 mm x 89 mm x 42.5 mm; 7.48 in x 3.50 in x 1.67 in

Weight: 420 g / 0.92 lbs (including battery)

Technical specification for cable detector (receiver)

Detection Depth: depends on material and the particular application

Pole Application: about 0 ... 2 m / 0 ... 6.56 ft

Bipolar Application: about 0 ... 0.5 m / 0 ... 1.64 ft

Simple Loop: Up to 2.5 m / 8.2021 ft

Grid Voltage Detection: about 0 ... 0.4 m / 0 ... 1.31 ft

Display: LCD

Power Supply: 6 x 1.5V AAA batteries

Power Consumption (minimum voltage): about 32 mA

Power Consumption (maximum voltage): approximately 89 mA

Environmental Conditions: 0 ... +40 °C / +32 ... +72 ° F

rel. Humidity <80%

Storage Conditions:  -20 ... +60 °C / +12 ... +92 ° F

rel. Humidity <80%

Dimensions: 241.5 mm x 78 mm x 38.5 mm; 9.5 in x 3.07 in x 1.51 in

Weight: 350 g / 0.77 lbs (including batteries

Dilivery Contents

1 x PCE-CL 20 cable detector (1 x transmitter and 1 x receiver)

2 x alligator clips

2 x measuring tips

2 x test leads

1 x grounding rod

1 x carrying strap

1 x carrying bag

1 x 9 V battery

6 x 1.5 V AAA batteries

1 x user manual
