Specifications
Operating frequency:60 kHz, sine wave
Conductivity measuring range:0.51% IACS ... 112% IACS
0.3 MS/m ... 65 MS/m
Resistance range:0.015388 ... 3.33333 Ω • mm² / m
Conductivity measuring resolution:0.01% IACS (at <51% IACS)
0.1% IACS (at 51% IACS ... 112% IACS)
Conductivity measuring accuracy:± 0.5% at 20°C / 68°F
± 1% in the range 0 ... 40°C / 32 ... 104°F
Temperature measuring range:0 ... 50°C / 32 ... 122°F
Temperature measuring accuracy:± 0.5°
Temperature compensation:Automatic adjustment of conductivity result to the value at 20°C / 68°F
Operating conditions:0 ... 50°C / 32 ... 122°F, 0 ... 95% relative humidity (RH)
Display:LCD, backlit
Menu languages:English, German, Chinese (simplified)
Power supply:Internal, rechargeable battery
Probe diameter:Ø 14 mm / ≈ 0.55 in
Memory:Stores up to 500 groups of measurement values
Data interface:USB port connection
Dimensions:≈ 220 x 95 x 35 mm / 8.66 x 3.74 x 1.38 in
Weight:≈ 415 g / 1 lb (with probe)
Dilivery Contents

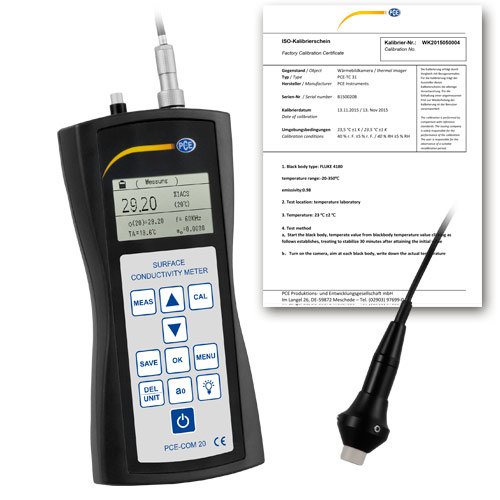

1 x PCE-COM 20 conductivity tester for metals
1 x Sine wave measuring probe
1 x Set of calibration plates (Ti, Bronze, Cu)
1 x PC-compatible software
1 x USB to RS-232 data cable
1 x Charging adapter
1 x Hex wrench
1 x Carrying case
1 x User manual
