Specifications
Measurement range: 0 ... 1250 µm / 49.2 mils
Resolution:
0.1 µm / 0.004 mils (in a range of 0.0 to 99.9 µm / 3.9 mils)
1 µm / 0.04 mils(above the range)
Accuracy: ±2 % or 2.5 µm / 0.10 mils (highest reading is valid)
Minimum surface measurable: 6 mm x 6 mm / 0.2 in x 0.2 in
Minimum radial curve: convexed: 5 mm / 0.2 in; concaved: 60 mm / 2.4 in
Minimum thickness of material
0.3 mm / 0.01 in (for ferrous materials)
0.1 mm / 0.004 in (for non-ferrous materials)
Display: LCD with 4 mm x 10 mm (0.2 in x 0.4 in) high digits
Operating temperature: 0 ... 50°C / 32 ... 122°F
Power: 4 batteries
Dimensions: 126 x 65 x 27 mm / ; 5.0 x 2.6 x 1.1 in
Weight: 120 g / 0.26 lbs with batteries
Dilivery Contents

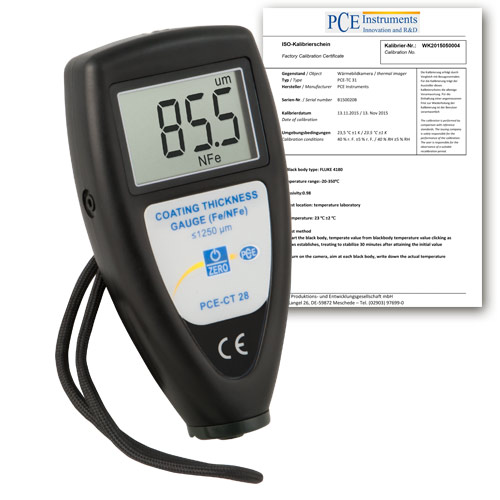

1 x PCE-CT 28 Coating Thickness Gauge with integrated F/N sensor
1 x Carrying case
4 x Batteries
1 x Set of calibration standards
1 x User's manual
1 x ISO Calibration Certificate
