Specifications
Measuring range Type F: 0 ... 5000 μm / 0 ... 5 mm / 0 ... 196 mils
Measuring accuracy Type F: ± (2% + 1 μm)
Resolution Type F: 0 ... 99.9 μm: 0.1 μm, 100 ... 999 μm: 1 μm
> 1000 μm: 0.01 mm
Measuring principle Type F: Magnetic induction
Smallest thickness of the base material: 0.02 mm
Measuring range Type N: 0 ... 3000 μm / 0 ... 3 mm / 0 ... 118 mils
Measuring accuracy Type N: ± (2% + 1 μm)
Resolution Type N: 0 ... 99.9 μm: 0.1 μm, 100 ... 999 μm: 1 μm
> 1000 μm: 0.01 mm
Measuring principle Type N: Eddy current
Smallest thickness of the base material 0.05 mm
Calibration: One-point to four-point calibration, zero calibration
Data storage: Direct measurement (no measurement data storage), four data groups (automatic measurement data storage of up to 2000 measured values)
Statistical functions Number of measurements, average, minimum, maximum, standard deviation
Measurement units: μm, mm, mils
Alarm: Alarm limits adjustable, alarm symbol is displayed when limits are exceeded
Minimum radius of curvature (convex): 5 mm / 0.2 in
Minimum radius of curvature (concave): 25 mm / 1 in
Smallest measuring surface: Diameter of 20 mm / 0.8 in
Maximum measuring rate 2 x per second
Data interface Data transfer via USB
Power supply: 2 x 1.5V AAA batteries
Menu languages German, English, Russian, Chinese
Operating conditions: 0 ... 50°C / 32 ... 122°F, 20 ... 90% RH
Storage conditions: -10 ... 60°C / 14 ... 140°F
Standards: CE ROHS FCC
Dimensions: 110 x 53 x 24 mm / 4.33 x 2.09 x 0.95 in
Material housing: ABS plastic
Weight: 92 g / < 1 lb
Dilivery Contents

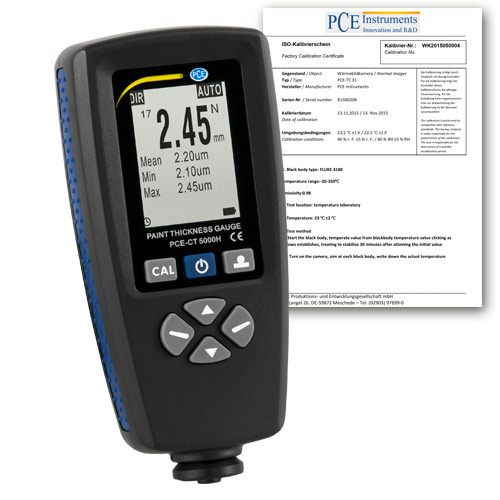

1 x PCE-CT 5000H coating thickness gauge
2 x Zero calibration plates (ferrous and non-ferrous)
5 x Calibration plates
2 x 1.5V AAA batteries
1 x USB cable
1 x PC-compatible software
1 x User manual
1 x Carrying case
1 x ISO calibration certificate
