Specification
Bandwidth / Frequency range of the probe: EP-03H 100 MHz ... 3 GHz
Range selection for the probe EP-03H: 900 MHz, 1 GHz, 1.8 GHz,
2.4 GHz, 2.45 GHz, 3 GHz
Bandwidth / Frequency range of the probe: EP-04L 100 kHz ... 100 MHz
Range selection for the probe: EP-04L 100 kHz, 200 kHz, 500 kHz, 1 MHz,
10 MHz, 13.56 MHz, 100 MHz
Accuracy: ±2 dB
Measuring ranges:
0 ... 199.99 V/m
0 ... 99.999 W/m²
0 ... 9.9999 mW/cm²
Resolution: 0.01 V/m
0.001 W/m²
0.0001 mW/cm²
Inital value:
> 1 V/m
> 0.03 W/m²
> 0.0003 mW/cm²
External sensor probe types: Triple axis
Display: LCD, 58 x 34 mm / 2.28 x 1.34"
Limit value: Adjustable
Alarm: Acoustic signal when limit value is exceeded
Internal memory: 16,000 data records
Power: 9 V battery
Operating conditions: 0 ... 50 ºC / +32 ... +122 ºF, up to 80 % relative humidity (RH)
Dimensions Meter: 200 x 76.2 x 36.8 mm / 7.88 x 3.00 x 1.45"
Probes: 70 x 240 mm / 2.76 x 9.45"
Weight 523 g / 1.16 lb (with battery included)
Delivery contents

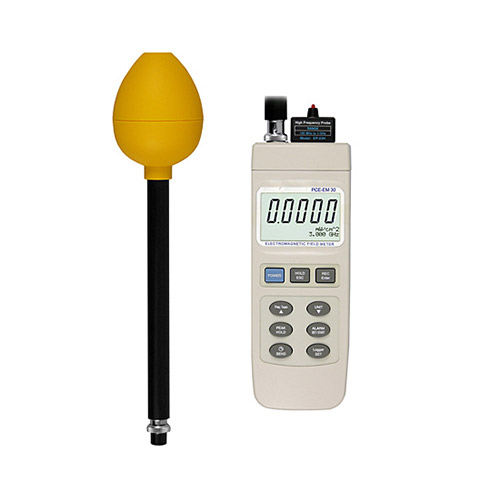

1 x PCE-EM 30 electromagnetic field (EMF) meter
2 x external sensor probes
2 x frequency range connectors
1 x 9 V battery
1 x carrying case
1 x user manual
