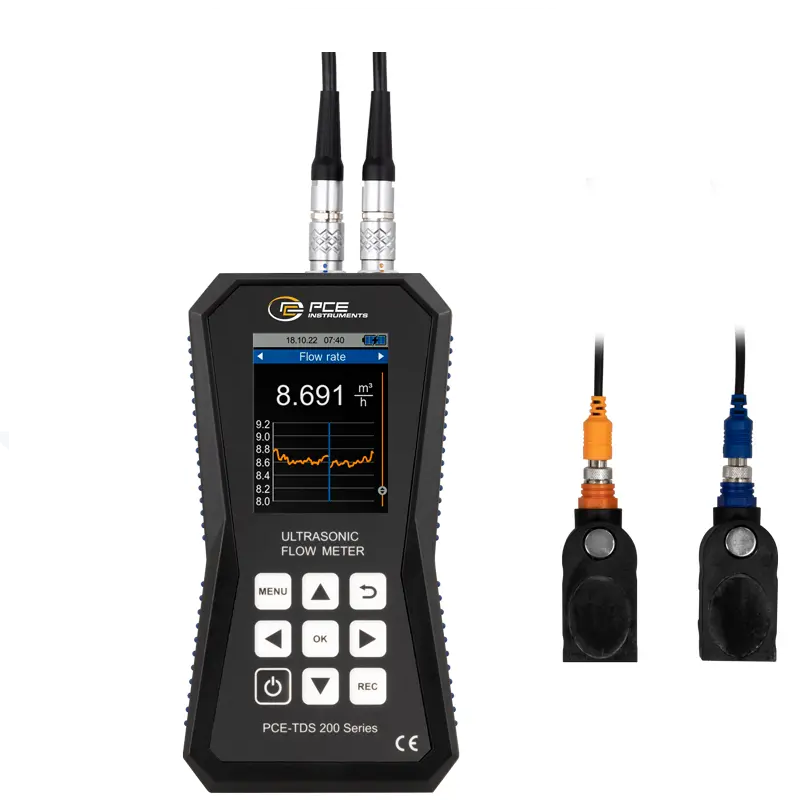

PCE PCE-TDS 200 M-ICA Ultrasonic Flow Meter

Flow measurement

Measuring range: ±32 m/s

Accuracy: 0.001 m/s

Genauigkeit:

DN ≥50 mm: ±1.5 % f.s. for velocities > 0.3 m/s

DN <50 mm: ±3.5 % f.s. for velocities > 0.3 m/s

Reproducibility: ±0.5 % of measured value

PCE-TDS 200 M SENSOR: Sensor pair

Pipe diameter: DN 50 ... 700 / 57 ... 720 mm

Temperature resistance:-30 ... 160 °C

Measuring method: Z, V, N, W

Medium

- water

- sea water

- oil

- crude oil

- methanol

- ethanol

- diesel

- petrol

- petroleum

- user defined

(manual input of the sound velocity from the medium)

All liquids with an impurity: <5 %

Pipe material

- copper CU

- steel FE

- stainless steel VA

- aluminium AL

- brass ME

- cast iron CI

- iron FE

- nickel NI

- titanium TI

- zink ZI

- acrylic AC

- polyethylene PE

- polypropylene PP

- polyvinyl chloride PVC

- nylon NY

- user defined

(manual input of the transversal sound velocity of the pipe material)

Inner pipe lining

- no lining

- user defined

- epoxy resin

- rubber

- mortar

- polystyrene PS

- polyethylene PE- polytetrafluoroethylene PTFE

- polyurethane PU

- polypropylene PP

- user defined

(manual input of the longitudinal sound velocity of the inner lining of the pipe)

Measurement parameters: flow velocity, volume flow and volume

Units (dimensions): mm, in

Units (flow velocity): m/s, ft/s

Units (volume flow): m³, l, gal, igl, mgl, cf, bal, ib, ob

Time specification: seconds, minutes, hours, days

Units (volume): m³, l, gal, igl, mgl, cf, bal, ib, ob

Further specifications

2.8" LCD

Menu: metrisch / imperial

Menu languages: German, English, French, Spanish,Italian, Dutch, Portuguese, Danish, Turkish, Polish, German Turkish, Polish, Russian, Chinese, Japanese

Operating and storage conditions

Temperature: -20 ... +65 °C

Humidity: 10 ... 95 % r. h., non-condensing

Data logger: 32 GB memory capacity / 10 million measuring points

Unterface: USB (for online measurement, readout of the internal memory memory and for recharging the battery)

Protection class: IP52

Power supply Internal: Internal: LiPo battery (3.7 V, 2500 mAh), External: USB 5 VDC, 500 mA

Operating time: approx. 10 h

Dimensions: 165 x 85 x 32 mm

Weight: 255 g
