Measuring range:
PE: pulse-echo mode 0.65 ... 600 mm (steel)
EE: echo-echo mode 2.50 ... 60 mm
Accuracy: ± 0.04 mm H [mm] (<10 mm); ± 0.4% H [mm] (> 10 mm)
H refers to the material thickness of the workpiece
Resolution: 0.1 mm / 0.01 mm / 0.001 mm (adjustable)
Measurable materials: Metals, Plastics, Ceramics, Epoxy resin, Glass and all homogeneous materials
Working modes:Pulse echo mode (fault and blower detection); Echo-Echo mode (hiding layer thicknesses, eg paints)
Calibration: Sound velocity calibration, Zeroing, Two-point calibration
View mode: Normal mode, Scan mode, Difference mode
Units: mm / inch
Data transfer: Print via Bluetooth / USB 2.0
Storage: Non-volatile memory with 100 data groups with 100 data sets each
Operating time: Continuous operation 100 h
Automatic stand-by mode (adjustable)
Automatic switch-off mode (adjustable)
Power supply: 4 x AA battery 1.5V
Display: 320 x 240 pixels TFT LCD color display with brightness adjustment
Operating conditions: 0 ... 50°C / 32 ... 122°F, ≤ 80% RH not condensing
Storage conditions: -20 ... 70°C / -4 ... 158°F, ≤ 80% rh non-condensing
Dimensions: 185 x 97 x 40 mm / 7.3 x 3.8 x 1.6 in
Weight: 375 g / < 1 lb
- Specification of the available sensors for wall thickness gauge PCE-TG 300:
NO2
Frequency: 2.5 MHz
Diameter: 14 mm
Measuring range: 3 ... 40 mm (steel); 3 ... 300 mm (steel)
Minimum diameter of pipes : Not suitable for curved materials
Description: For damping / scattering materials (plastics, cast iron)
NO5
Frequency: 5 MHz
Diameter: 10 mm
Measuring range: 1 ... 600 mm (steel)
Minimum diameter of pipes: 20 x 3 mm
Description: Normal measurement
NO5 / 90°
Frequency: 5 MHz
Diameter: 10
Measuring range: 1 ... 600 mm (steel)
Minimum diameter of pipes: 20 x 3 mm
Description: Normal measurement
NO7
Frequency: 7 MHz
Diameter: 6 mm
Measuring range: 0.65 ... 200 mm (steel)
Minimum diameter of pipes: 15 x 2 mm
Description: Or thin-walled or heavily curved pipes
HT5
Frequency: 5 MHz
Diameter: 12 mm
Measuring range: 1 ... 600 mm (steel)
Minimum diameter of pipes: 30 mm
Description: For high temperatures (max 300°C / 572°F)
P5EE
Frequency: 5 MHz
Diameter: 10 mm
Measuring range: PE: 2 ... 600 mm, EE: 2.5 ... 100 mm
Minimum diameter of pipes: 20 x 3 mm
Description: Normal measurement and EE test
Delivery Scope:

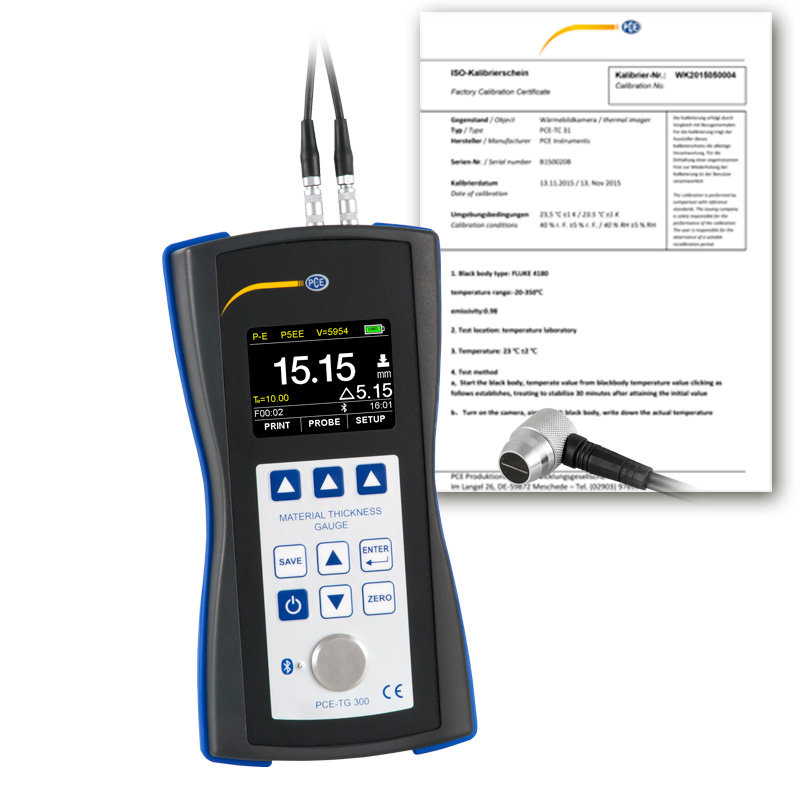

1 x Thickness meter PCE-TG 300-ICA
1 x Sensor P5EE
1 x 100 ml coupling gel
1 x Transport case
4 x AA batteries
1 x User manual
1 x ISO Calibration Certificate
