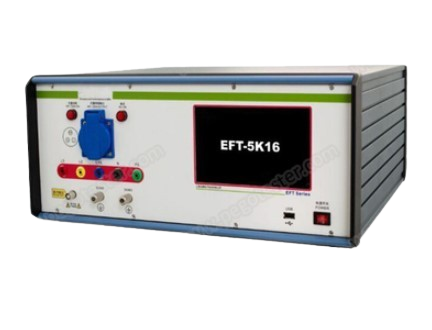

PEGO EFT-5K16 Electrical Fast Transient / Burst Generator (3-phrase 380V,16A, 50/60Hz)

open circuit output voltage: 0.25－5kV ±5％

50Ω load output voltage: 0.125－2.5kV ±5％

Wave sharp of the pulse: 5/50ns，50Ω/1000Ωload

Rise time

5ns ±30％，50Ω load

5ns ±30％，1000Ω load

duration

50ns ±30％，50Ω load

50ns －15/+100sn，1000Ω load

Impedance: 50Ω ±20％

Output polarity: Negative/positive

Repetition frequency: 0.1－1200.0kHz ±10％

burst duration

Standard: 15ms@2.5kHz/5kHz,750μs@100kHz,250μs@300kHz

Adjustable

Nos of pulse can adjust at 1-255

Burst duration=（pulse number-1）/repetition frequency

Burst period: 100－999ms

Burst mode: Synchronous or asynchronous

Synchronous phrase: Free set at 0－360⁰ , resolution: 1⁰

Test function: IEC standard or set test mode freely (1000 groups)

Built-in coupling and decoupling network (3-phrase and 5 wires)

AC: 3-phrase 380V,16A, 50/60Hz

DC: 380V,16A (Max)

Coupling mode: L1,L2, L3, N,PE, freely setup

Coupling capacitors:: 33nF ±10％

Environment requirements: Temperature:15°C－35°C; Humidity: 10%－75%

Power requirements: AC220±10％,50/60Hz, 300W

Dimension: 470mm(W)×215mm(H)×500mm(depth)

Weight: About 25kg

Electrical fast transient / burst generator is designed according to IEC61000-4-4. It is widely applied to the fields of industry control appliance, household appliance, medical equipment, components, auto cotnrol equipment and etc..

The electrical fast transient/ burst generator is to simulate the electrical fast transient or burst, the repetitive fast transient test is a test with bursts consisting of a number of fast transients, coupled into power supply, control, signal and earth ports of electrical and electronic equipment.

The test voltage of burst generator is from 0.25KV to 5KV, which can cover all the test levels, and user can define the test level. The high amplitude, short rise time, high repetition rate are completely meet the requirment of IEC61000-4-4. A coupling and decoupling network is built-in the equipment.
