Control System: 7 inch touch screen +PLC
Inner Chamber Dimension: 900*900*900 (W*D*H)
Outer Dimension: 1350*3400*1950mm (L*D*H)
IPX3-4 Parameter
Tube Radius (mm): R400 (R200 for optional)
Delivery Rate (L/min): IPX3=1.8L/min, IPX4=2.6L/min
Aperture of nozzles (mm): 0.4
Space between Nozzles (mm): 50
Inner Diameter of Tube (mm): 15
Tube Angle: 1200 (IPX3), 3600 (IPX4)
Tube Speed: 4s for 2*1200, 12s for 2*3600
Flow Control Mode: Manual control
IPX5-6 Parameters
Aperture diameter of IPX5 nozzle (mm): 6.3
Aperture diameter of IPX6 nozzle (mm): 12.5
Delivery rate for IPX5 (L/min): 12.5±0.625
Delivery rate for IPX6 (L/min): 100±5
Distance from specimen: 2.5m
Nozzles Swing Mode: UP-Down swing (angle, speed adjustable)
Flow Control Mode: Manual control
Turntable Parameters
Diameter of Turntable (mm): Ø600
Speed of Turntable: 1-5r/min
Height of Turntable: 550-1100mm
Protection: Electric leakage, hydropenia, short circuit
Working Power (V): 380V
Power (KW): 3
Standard: IEC60529:1989+A1:1999, GB4208-2008, GB7000.1（IPX3,
IPX4, IPX5, IPX6)

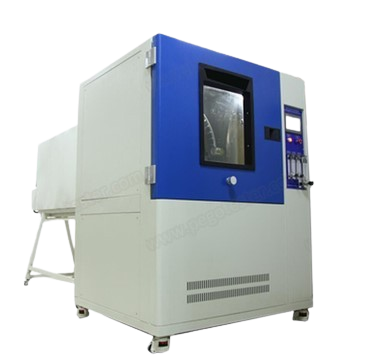

IPX3-6 waterproof test chamber combines the oscillating tube with jet hose nozzles in one system. It can meet the test requirements of IEC60529 for IP levels IPX3, IPX4, IPX5 and IPX6. Waterproof test simulates the conditions of splashing water, water jets and powerful water jets, which is mainly applied to electronic products, luminaire, electric components, motor and householding appliance. The waterproof test can help to judge the products' performance, and provide the basis for design, improve and inspection.
The inner box and turntable is made by SUS304 stainless steel with thickness of 1.2mm, which can against the water impact. The outer box is made of high quality steel covered with paint. Built in water tank and with ball valve to control water level, the water can be recycled. The system is controlled by Panasonic PLC and 7 inch touch screen, user is easy to operate the tests.
