Inner size: L1000*D1000*H1000mm (depends on the specimen)
External size: L1400*D1180*H1850mm
Test time: 30S for each position
Jet angle: 0°30°60°90°
Numbers of jet: 4
Diameter of turntable: 400mm
Lifting mode of turntable: Fixed type
Spray distance: 100-200mm (manual control)
Water pressure: 8000-10000Kpa
Water flow: 14～16L / min
Temperature: 25℃ (room temperature), 80±5℃
Test time: 120s (30s/position)
Rotational Speed: 4～10r/min(adjustable)
Bear weight: 50kg
Protection device: Leakage, water break, short circuit
Power(V): 380V/50Hz
Sample Power (V): 220V
Power(KW): 10

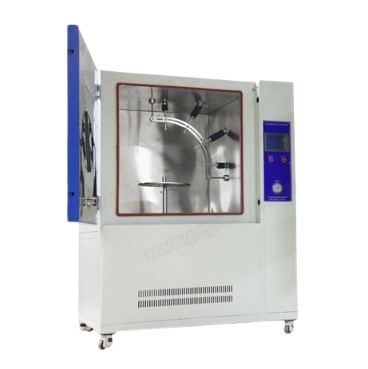

IPX9K high pressure and temperature Jetproof Test Equipment is designed according to IEC60529, DIN40050-9 figure 7 and ISO20653 figure 8 and 9 for verifying protection against high pressure/steam jet cleaning. The test is applied to electrical equipment in road vehicles, motors, electric components and auto parts to do the waterproof test. After the test, the user can judge if the performance of the product can meet the requirements or not, and then do the re-designing and improvement.
